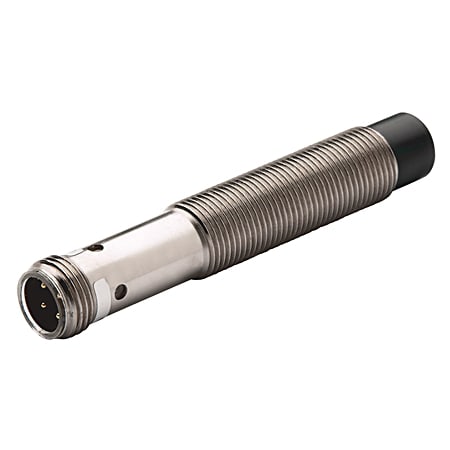

Inductive Proximity Sensor
Produktnummer: 872C-D2NP8-D4
Produktstatus:
inkl. mva.
Proximity Sensor, 3-Wire DC Standard Barrel, 8mm Diameter, Tubular:Nickel Plated BrassRectangular, Standard, 2mm Sensing Distance, Shielded, N.O., Source (PNP) Output, Micro QD (DC)
Inductive Prox Sensor, Nickel Brass Inductive Sensor, 8 mm Barrel Diameter, DC Standard, 2 mm Sensing Distance, Normally Open Sourcing, Standard Barrel, 4 Pin DC Micro QD, 5-30V DC
Egenskaper for produkt/familie
- Includes highly-visible status indicator
- Applications include:
- Includes threaded, nickel-plated brass barrels
- Provides short circuit, overload, transient noise, false pulse, and reverse polarity protection
- 80;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Barrel Diameter | 8mm |
| Connection Type | Micro Quick-Disconnect (DC) |
| Output Configuration | N.O., Source (PNP) |
| Nominal Sensing Distance | 2mm |
| Barrel Type | Standard |
| Proximity Sensor Type | 3-Wire DC |
| Shielding | Shielded |
| Sensing Distance | 2mm |
| Voltage Rating | 10 - 30V DC |
| Connection | Micro Quick-Disconnect (DC) |
| Output | N.O., Source (PNP) |
| Application | 3-Wire DC |
| Special Features | Standard |
| Opprinnelsesland | CZ |
| Tolltariffnummer | 85365019 |
| Lengde | 8.204 |
| Høyde | 2.108 |
| Livssyklus | Active |
