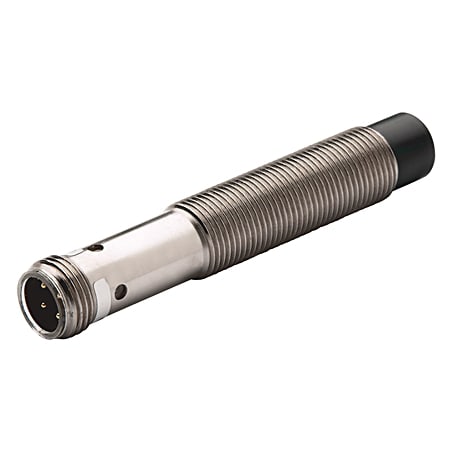

Inductive Proximity Sensor
Produktnummer: 872C-D10NP30-D4
Produktstatus:
inkl. mva.
Proximity Sensor, 3-Wire DC Standard Barrel, 30mm Diameter, Tubular:Nickel Plated BrassRectangular, Standard, 10mm Sensing Distance, Shielded, N.O., Source (PNP) Output, Micro QD (DC)
Inductive Prox Sensor, Nickel Brass Inductive Sensor, 30 mm Barrel Diameter, DC Standard, 10 mm Sensing Distance, Normally Open Sourcing, Standard Barrel, 4 Pin DC Micro QD, 10-30V DC
Egenskaper for produkt/familie
- Includes highly-visible status indicator
- Provides short circuit, overload, transient noise, false pulse, and reverse polarity protection
- Applications include:
- Includes threaded, nickel-plated brass barrels
- 80;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Application | 3-Wire DC |
| Sensing Distance | 10mm |
| Special Features | Standard |
| Output | N.O., Source (PNP) |
| Connection | Micro Quick-Disconnect (DC) |
| Voltage Rating | 10 - 30V DC |
| Proximity Sensor Type | 3-Wire DC |
| Barrel Diameter | 30mm |
| Nominal Sensing Distance | 10mm |
| Shielding | Shielded |
| Barrel Type | Standard |
| Output Configuration | N.O., Source (PNP) |
| Connection Type | Micro Quick-Disconnect (DC) |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Opprinnelsesland | CZ |
| Tolltariffnummer | 85365080 |
| Lengde | 13.843 |
| Høyde | 3.048 |
| Livssyklus | Active |
