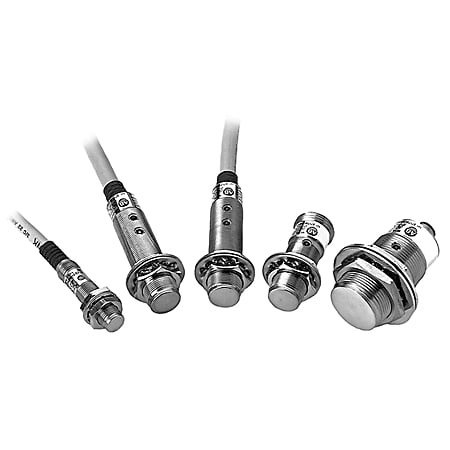

871TM Tubular Stainless Steel Sensors
Produktnummer: 871TM-N10NP12-D4
Produktstatus:
inkl. mva.
Proximity Sensor, 3-Wire DC Extended Range Standard Barrel, 12mm Diameter, Unshielded, Tubular:Stainless Steel, Metal Face, 10mm Sensing Distance, N.O., Source (PNP) Output, IO Link Enabled, Micro QD (DC)
Inductive Sensor, Metal Face, 12 mm Barrel Diameter, DC Unshielded, 10 mm Sensing Distance, N.O. Sourcing DC IO-Link, Micro Quick Disconnect
Egenskaper for produkt/familie
- Sensing modes available: standard and extended/equal range
- 1200 psi washdown
- Short circuit, overload, transient noise, false pulse, reverse polarity and radio frequency interference protection
- IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
- Incorporates embedded IO-Link communication protocol in select 871TM sensors to help minimize downtime and increase productivity
- 90;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Shielding | Unshielded |
| Output Configuration | N.O., Source (PNP) |
| Nominal Sensing Distance | 10mm |
| Barrel Diameter | 12mm |
| Connection Type | Micro Quick-Disconnect (DC) |
| IO Link Enabled | Yes |
| Connection Type Part Number Position 2 for Proximity Sensors | 4 |
| Proximity Sensor Type | 3-Wire DC Extended Range Standard Barrel |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Voltage Rating | 10 - 30 V DC |
| Cable Length | No Cable |
| Output | N.O., Source (PNP) |
| Opprinnelsesland | HU |
| Tolltariffnummer | 85365019 |
| Lengde | 19.177 |
| Høyde | 1.524 |
| Livssyklus | Active |
