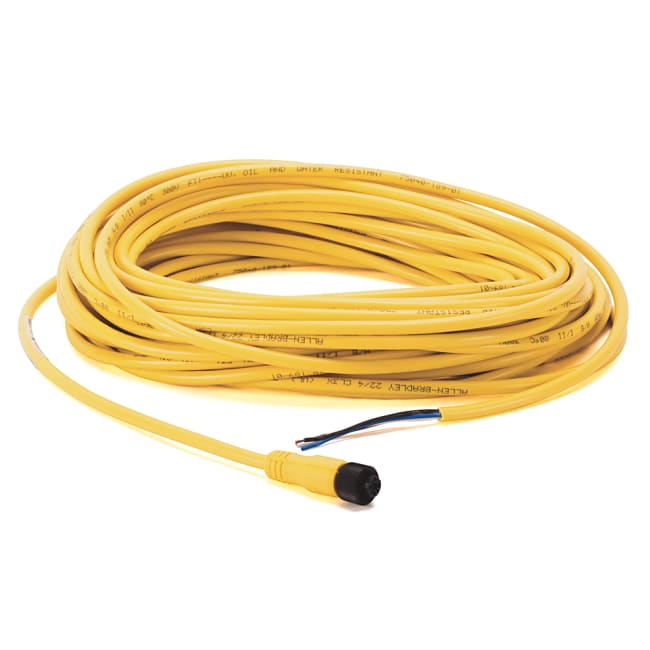

M12 kabel, 4-Pin, hunn-løse ender, Gul, Uskjermet, 15m
Produktnummer: 889D-F4AC-15
Produktstatus:
inkl. mva.
DC Micro (M12), Female, Straight, 4-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, No Connector, 15 meter (49.2 feet)
DC Micro Cable, Female, Straight (Int Threads), Female, Straight (int threads), 4-Pins, Standard Materials, 4-Pins, Cable, No Connector, Cable - IEC Stndrd Color Code, No Connector, Same as First End, PVC Cbl, Yellow, UnShld, 22AWG, PVC Cable, Yellow, 22AWG, Cable - IEC StndrdColor Code, Standard, 15 m
Egenskaper for produkt/familie
- Includes ratcheting coupling nut for added vibration resistance
- Includes general purpose 18 AWG cables
- Includes 12-pin/11-conductor on 19-pin for passive distribution and other box applications
- Includes heavy duty STOOW 16 AWG cables
- Includes 12-pin configuration for SafeShield™ light curtains and other applications
- Includes nickel-plated brass coupling nuts on Pico (M8)
- Includes ratcheting coupling nut which resists vibration
- Provides highly visible yellow polyvinylchloride (PVC) jacket which resists oil and chemicals
- Offers red cable jackets to identify safety networks on your machines
- Includes cordsets: Cable with integral female connector at one end and flying leads at the other
- Provides highly visible yellow polyvinylchloride (PVC) jacket resists oil and chemicals
- Provides heavy-duty re-enforcing braiding used as a grounded shield reduces noise
- Includes patchcords: Cable with integral connector at each end (one male, one female)
- Offers a one-piece molded body design
- Includes epoxy-coated zinc coupling nuts which provide durability
| Spesifikasjoner | |
|---|---|
| Wire Size | 22AWG |
| Cable Color Code | IEC Standard Color Code (European) |
| Cable Type | PVC Cable, Yellow, Unshielded |
| Units | Meters |
| Standard or Build-to-Order Cable Length | 15 meters (49.2 feet) |
| Hardware Material | Epoxy coated Zinc |
| Special Characteristics | Standard |
| Number of Pins | 4-Pin |
| Female End Termination | DC Micro (M12) |
| Female Connector Style | Female, Straight |
| Pin Layout (Male End) | Flying Lead Color Codes: |
| Pin Layout (Female End) | Pinout: |
| Number of Pins | Same as Female End |
| Male Connector Style | No Connector |
| Male End Termination | Cable |
| Opprinnelsesland | CN |
| Tolltariffnummer | 85444290 |
| Lengde | 26.187 |
| Høyde | 8.992 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 889-td002_-en-p.pdf Filtype: application/pdf |
