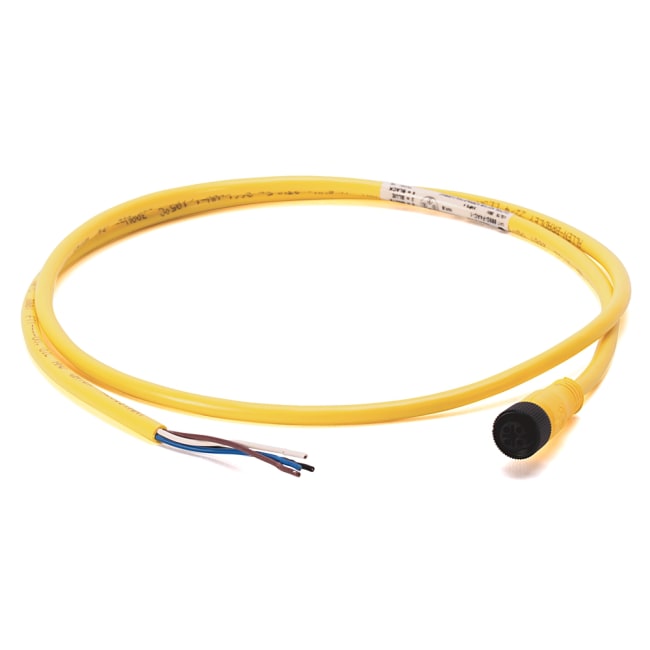

M12 kabel, 4-Pin, hunn-løse ender, Gul, Uskjermet, 12m
Produktnummer: 889D-F4AC-12
Produktstatus:
inkl. mva.
DC Micro (M12), Female, Straight, 4-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, No Connector, 12 meter (39.36 feet)
DC Micro Cable, Female, Straight (Int Threads), Female, Straight (int threads), 4-Pins, Standard Materials, 4-Pins, Cable, No Connector, Cable - IEC Stndrd Color Code, No Connector, Same as First End, PVC Cbl, Yellow, UnShld, 22AWG, PVC Cable, Yellow, 22AWG, Cable - IEC StndrdColor Code, Standard, 12 m
| Spesifikasjoner | |
|---|---|
| Female Connector Style | Female, Straight |
| Number of Pins | 4-Pin |
| Female End Termination | DC Micro (M12) |
| Units | Meters |
| Standard or Build-to-Order Cable Length | Build-to-Order Cable Length |
| Pin Layout (Male End) | Flying Lead Color Codes: |
| Pin Layout (Female End) | Pinout: |
| Number of Pins | Same as Female End |
| Male End Termination | Cable |
| Male Connector Style | No Connector |
| Cable Color Code | IEC Standard Color Code (European) |
| Cable Type | PVC Cable, Yellow, Unshielded |
| Wire Size | 22AWG |
| Hardware Material | Epoxy coated Zinc |
| Special Characteristics | Standard |
| Opprinnelsesland | CN |
| Tolltariffnummer | 85444290 |
| Lengde | 26.391 |
| Høyde | 8.89 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 889-td002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2-Dimensional Drawing (PDF) Filnavn: 889D-F4AC-2.pdf Filtype: application/pdf |
Last ned | |
|
2-Dimensional Drawing (DWG/DXF) Filnavn: 889D-F4AC-2.dxf Filtype: image/vnd.dxf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: 889D-F4AC-2 Filtype: application/x-zip-compressed |
Last ned |
