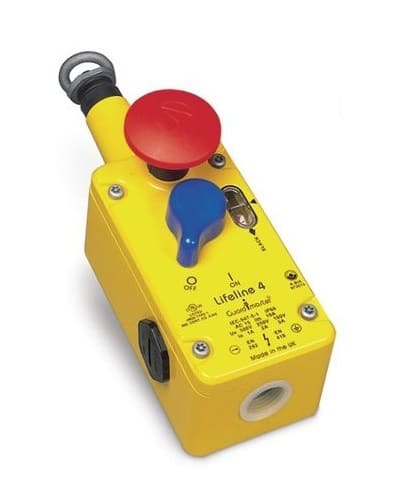

Lifeline 4, 0..75m, 5-pin M12 for Armorblock Guard I/O
Produktnummer: 440E-L2NNNYS
Produktstatus:
inkl. mva.
Cable Pull Switch, Lifeline 4, No Special Features, 2 N.C. Safety, 2 N.C. Safety Contacts, No Auxillary Contacts, Up To 75m Span, Emergency Stop Device, 5-pin Micro QD Safety I/O, Die Cast Alloy (Yellow)
Egenskaper for produkt/familie
- Includes lid mounted emergency stop button, designed to conform to ISO 850
- Provides switch lockout on cable pulled and cable slack
- Includes cable status indicator on switch lid
- Includes universal mounting and operation
- Provide switch span of 75...125 m
- 70;889D-F5ABDM-5
| Spesifikasjoner | |
|---|---|
| Product Family | Lifeline 4 |
| Type | Lifeline 4 |
| Maximum Cable Length | Up to 75m |
| Contacts | 2 Normally Closed, 2 Normally Open |
| Special Feature | With E-Stop |
| Conduit Entry/Connection Type | Connect to ArmorBlock Guard I/O 5-Pin Micro (M12) |
| Cordsets | Patchcord: DC Micro (M12), Female, Straight, 5-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, DC Mic, Male, Straight, 5 meter (16.4 feet) |
| Lengde | 24.003 |
| Høyde | 9.804 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440e-in004_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
Specifications Filnavn: en-US Filtype: application/pdf |
Last ned |
