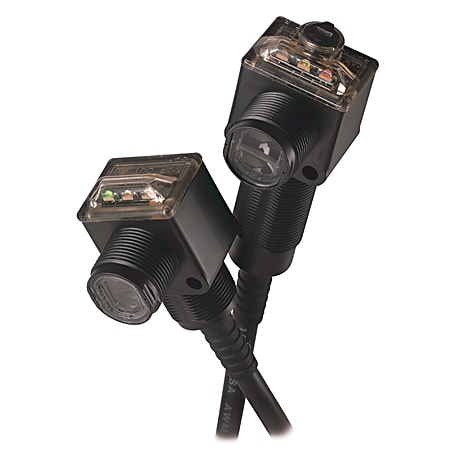

LaserSight, Standard Diffuse, D.O, NPN/PNP 4-pin pigtail
Produktnummer: 42EF-D8KBA-F4
Produktstatus:
inkl. mva.
RightSight Photosensor, 18 mm Cylindrical, Front Through Hole, Standard Diffuse, Laser, 300 mm, Manually Adjustable, NPN & PNP W/ SCP, DC Dark Operate, 4 Pin Micro QD on Pigtail
Egenskaper for produkt/familie
- 120;889D-F4AC-5
- Class I visible laser
- PNP and NPN outputs
- 360° visible status indicators
- Patented compact right angle housing
- Universal 18 mm mounting at base and nose, and through-hole mounting
- Teach button or potentiometer
- Short circuit and reverse polarity protection
| Spesifikasjoner | |
|---|---|
| Model Selection Information | Selection for LaserSight RightSight |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Type | RightSight Diffuse |
| Connection Type | 4-pin DC Micro QD on 152mm (6in) pigtail |
| Output Type | Both Sink (NPN) and Source (PNP) |
| Sensing Mode | Standard Diffuse |
| Sensitivity Adjustment | Manually Adjustable |
| Voltage Rating | 24V DC ± 10% |
| IO Link Enabled | No |
| Operating Voltage/Mode | DC - Dark Operate |
| Response Time | 1 ms |
| Light Source | Red Laser |
| Maximum Sensing Distance | 300mm (12in) |
| Lengde | 19.406 |
| Høyde | 13.691 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ef-in002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
AutoCad Drawing 2D (DXF) Filnavn: 42EF_DC.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: PHEL42EF_ph.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42EF_DC Filtype: application/x-zip-compressed |
Last ned |
