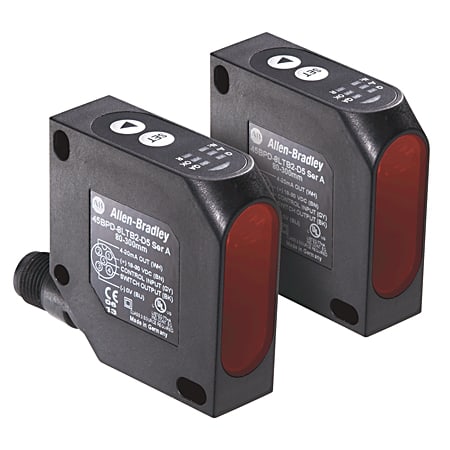

Laser Sensor w/ Analog Output - 85mm max sensing distance
Produktnummer: 45BRD-8JKB1-D4
Produktstatus:
inkl. mva.
Analog Output Laser Sensor, Side Through Hole, Laser Measurement, Laser, 85.00 EA , Not Adjustable Sensitivity, 1-8V AN, DC - Light Operate, 4 Pin Micro Quick Disconnect
Egenskaper for produkt/familie
- Self-contained sensor does not require external control devices
- Analog output is automatically scaled between taught set points
- Visible red Class II laser for small beam spot and alignment
- Sensing range up to 300 mm (approximately 1 ft).
- 270° rotatable micro quick disconnect connector
- Non-contact measurement
| Spesifikasjoner | |
|---|---|
| Spot Size | <0.8 mm @ 65 mm |
| Operating Voltage/Mode | DC - Light Operate |
| Length or Pins | 4 |
| Maximum Sensing Distance | 85mm (3.35in) |
| Measuring Range | 40mm (1.57 in.) |
| Optics/Sense Adjustment | Standard without Adjustment |
| Output Type | Analog |
| Light Source | Laser |
| Connector Type | DC Micro (M12) |
| Sensing Range | 85mm (3.35in) |
| Connection | DC Micro (M12) |
| Output | Analog |
| Voltage Rating | DC - Light Operate |
| Sensing Beam | Laser |
| Lengde | 24.0 |
| Høyde | 5.999 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 45brd-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 45BPD Filtype: application/x-zip-compressed |
Last ned | |
|
2D AutoCad Drawing (DXF/DWG) Filnavn: 45BPD-45BRD.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: 45BPD_PH.jpg Filtype: image/png |
Last ned |
