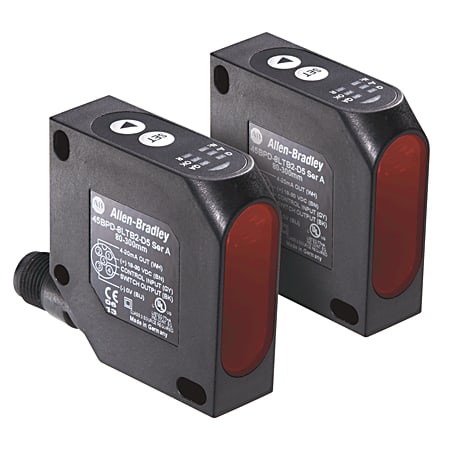

Laser med analog utg., 80..300mm, skalerbar
Produktnummer: 45BPD-8LTB2-D5
Produktstatus:
inkl. mva.
45BPD Laser Sensor w/ Analog & Discrete Output - 300mm (11.8in) Maximum Sensing Distance, DC Micro (M12)
Analog and Discreet Laser Sens, Side Through Hole, Laser Measurement, Laser, 300.00 EA , Teach Button, Analog and Discrete Outputs, DC - LO or DO Selectable, 5 Pin Micro Quick Disconnect
Egenskaper for produkt/familie
- Self-contained sensor does not require external control devices
- Visible red Class II laser for small beam spot and alignment
- Non-contact measurement
- 270° rotatable micro quick disconnect connector
| Spesifikasjoner | |
|---|---|
| Connection | DC Micro (M12) |
| Sensing Beam | Laser |
| Output | Analog + PNP Discrete |
| Sensing Range | 300mm (11.8in) |
| Voltage Rating | DC - LO or DO selectable |
| Measuring Range | 220mm (8.66 in.) |
| Output Type | Analog + PNP Discrete |
| Spot Size | 1.5 x 3.5 mm/2.0 x 4.5 mm |
| Length or Pins | 5 |
| Connector Type | DC Micro (M12) |
| Operating Voltage/Mode | DC - LO or DO selectable |
| Light Source | Laser |
| Maximum Sensing Distance | 300mm (11.8in) |
| Optics/Sense Adjustment | Standard without Adjustment |
| Opprinnelsesland | DE |
| Tolltariffnummer | 85414090 |
| Lengde | 23.698 |
| Høyde | 6.198 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 45bpd-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2D AutoCad Drawing (DXF/DWG) Filnavn: 45BPD-45BRD.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: 45BPD_PH.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 45BPD Filtype: application/x-zip-compressed |
Last ned |
