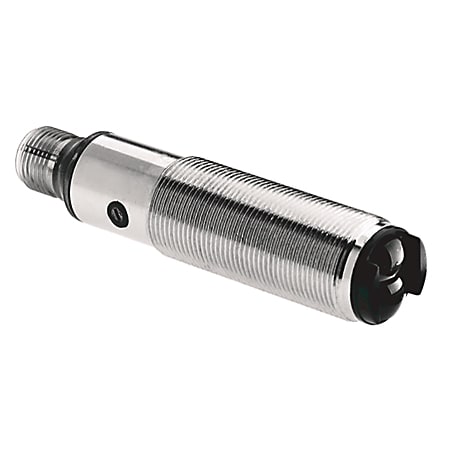

Cylindrical 18 mm Metal Laser Sensor
Produktnummer: 42CM-D8MPA-D4
Produktstatus:
inkl. mva.
PHOTOSWITCH Photoelectric Sensor, 300mm (12in), Standard Diffuse, Source (PNP), 4-pin DC Micro QD
18 mm Metal Sensor, 18 mm Cylindrical, Standard Diffuse, Laser, Teach Button, PNP, DC Complementary LO/DO, 4 Pin Micro Quick Disconnect, Metal, 18mm Mount, 0.70 ms, 3 mm Minimum Sensing Distance, 400 mm Operating Distance, 300 mm Sensing Distance, 4-pin DC Micro
Egenskaper for produkt/familie
- Metal housing for heavy duty industrial applications
- 18 mm cylindrical industry standard package
- Small spot size of 0.1 mm @ 100 mm sensing distance
- Teach button
- Short circuit and reverse polarity protection
- Class I visible laser
| Spesifikasjoner | |
|---|---|
| Connection | 4-pin DC Micro QD |
| Output | Source (PNP) |
| Sensing Beam | Laser (LaserSight) |
| Sensing Range | 300mm (12in) |
| Output Type | Source (PNP) |
| Sensing Mode | Standard Diffuse |
| Sensitivity Adjustment | Teachable |
| Connection Type | 4-pin DC Micro QD |
| Light Source | Red Laser |
| Maximum Sensing Distance | 300mm (12in) |
| Opprinnelsesland | IT |
| Tolltariffnummer | 85414090 |
| Lengde | 13.411 |
| Høyde | 3.404 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cm-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2D Dimension Drawing (DXF/DWG) Filnavn: 42CM_LASER.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: PHEL42CM_Laser_PH.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42cm_qd Filtype: application/x-zip-compressed |
Last ned |
