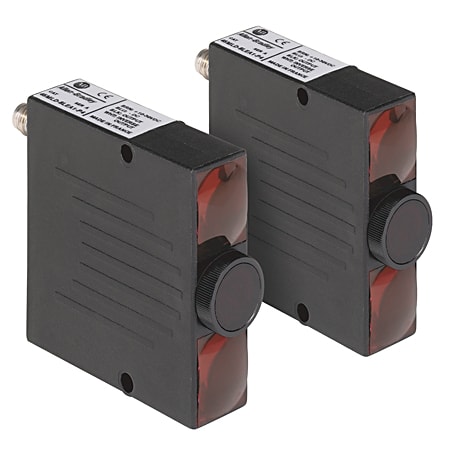

Laser Diffuse Sensor, Side Through Hole, Laser BGS Sensor, Sharp Cut Off Diffuse, Laser, 300.00 EA , Manually Adjustable, NPN - PNP Selectable Output, DC - LO or DO Selectable, 4 Pin Pico M8 Quick Disconnect
Egenskaper for produkt/familie
- NPN/PNP output
- Fast 200 µs response time for high-speed sensing or counting
- Adjustable focal length from 50...300 mm
- Timer option: 40 ms off delay (pulse stretcher, activated via wiring scheme)
- 60;889P-F4AB-5
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Laser |
| Voltage Rating | DC - LO or DO selectable |
| Output | Sink (NPN) / Source (PNP) Output Selectable |
| Sensing Range | 300mm (11.8in) |
| Connection | 4-pin Pico QD |
| Light Source | Laser |
| Operating Voltage/Mode | DC - LO or DO selectable |
| Output Type | Sink (NPN) / Source (PNP) Output Selectable |
| Maximum Sensing Distance | 300mm (11.8in) |
| Connection Type | 4-pin Pico QD |
| Connection Media | DC Pico(M8) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m |
| Lengde | 13.59 |
| Høyde | 3.56 |
| Livssyklus | Active |
