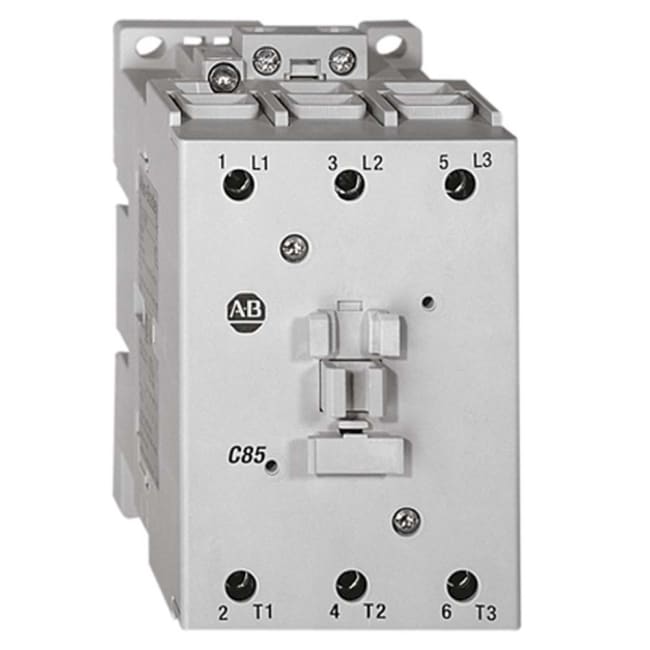

KONTAKTOR 96A-230V/97A-400V AC-3,230VAC

Produktnummer: 100-C97KF00
Produktstatus:


inkl. mva.

100-C IEC Contactor, 230V 50/60Hz, Screw Terminals, Line Side, 97A, 0 N.O. 0 N.C. Auxiliary Contact Configuration, Single Pack

100-C IEC Contactor, 230V 50/60Hz, Screw Terminals, Line Side, 97A, 0 N.O. 0 N.C. Auxiliary Contact Configuration, Single Pack

Egenskaper for produkt/familie

  • Offers common accessories for all contactor sizes
  • Includes space-saving coil-mounted control modules
  • Provides front and side mounting of auxiliary contacts
  • RoHs compliant
  • Provides IP2X finger protection
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
  • Includes electronic and pneumatic timing modules
  • Includes reversible coil terminations (line or load side)
  • Meets IEC, UL, and CSA standards requirements
  • Includes built-in surge suppression
  • Provides reversible coil terminations (line or load side)
Spesifikasjoner
Electrical Standards UL
Front Mounted Auxiliary Contact None
Left Side Auxiliary Contact None
Right Side Auxiliary Contact None
Interlock None
100-C or 104-C Contactor None
Terminal Type Screw Terminals
No. of Poles 3 Poles
Contact Configuration 0 N.O. 0 N.C. Auxiliary Contact Configuration
Coil Termination Line Side
Coil Voltage 230V 50/60Hz
Rated Operating Current, AC-3 97A
Package Quantity 1
3-Phase kW (50 Hz) 500V Rating 55
3-Phase HP (60 Hz) 230V Rating 30
1-Phase HP (60 Hz) 115V Rating 10
1-Phase HP (60 Hz) 230V Rating 20
3-Phase HP (60 Hz) 575V Rating 75
3-Phase kW (50 Hz) 400V/415V Rating 55
3-Phase HP (60 Hz) 200V Rating 30
3-Phase HP (60 Hz) 460V Rating 75
3-Phase kW (50 Hz) 230V Rating 30
3-Phase kW (50 Hz) 690V Rating 55
Connection Screw Terminals
Actual Life Actual Life Cannot be Calculated (more information)...
Utilization Category AC-3 Squirrel-cage motor starting and stopping
Opprinnelsesland PL
Tolltariffnummer 85364900
Lengde 13.487
Høyde 14.808
Livssyklus Active
