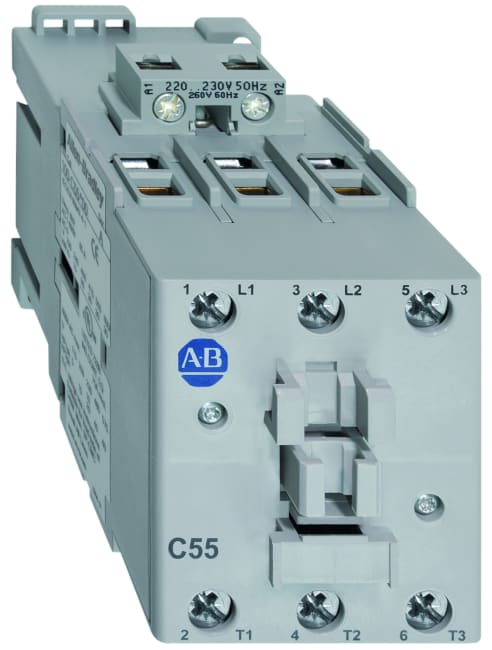

KONTAKTOR 55A AC3, 24VAC SPOLE
Produktnummer: 100-C55KJ00
Produktstatus:
inkl. mva.
100-C IEC Contactor, 24V 50/60Hz, Screw Terminals, Line Side, 55A, 0 N.O. 0 N.C. Auxiliary Contact Configuration, Single Pack
Contactor, 55 A, IEC, 24V 50/60 Hz, AC, 3 Normally Open Poles, 24V AC 50/60 Hz, No Contact Configuration, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load
| Spesifikasjoner | |
|---|---|
| Terminal Type | Screw Terminals |
| Rated Operating Current, AC-3 | 55A |
| Coil Voltage | 24V 50/60Hz |
| No. of Poles | 3 Poles |
| Coil Termination | Line Side |
| Contact Configuration | 0 N.O. 0 N.C. Auxiliary Contact Configuration |
| Package Quantity | 1 |
| Electrical Standards | UL |
| Utilization Category | AC-3 Squirrel-cage motor starting and stopping |
| Actual Life | Actual Life Cannot be Calculated (more information)... |
| 100-C or 104-C Contactor | None |
| Front Mounted Auxiliary Contact | None |
| Left Side Auxiliary Contact | None |
| Right Side Auxiliary Contact | None |
| Interlock | None |
| Opprinnelsesland | PL |
| Tolltariffnummer | 85364190 |
| Lengde | 11.989 |
| Høyde | 5.994 |
| Livssyklus | Active |
