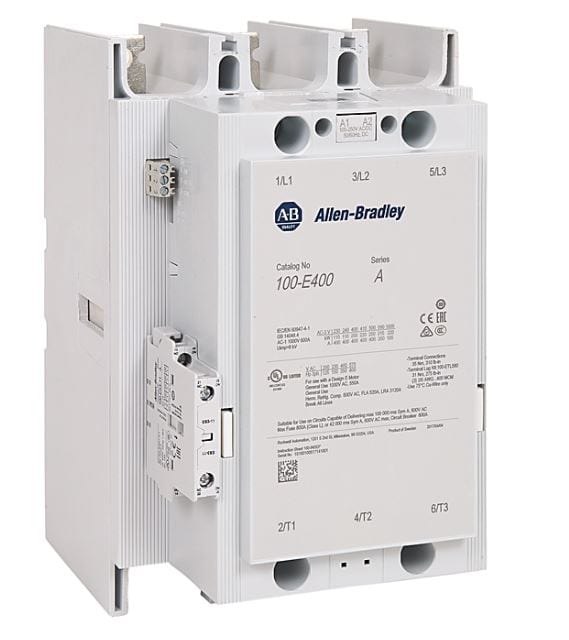

Kontaktor 400A, 100-250VAC/DC styresp. PLC interf. 1NO/1NC

Produktnummer: 100-E400ED11
Produktstatus:


inkl. mva.

100-E MCS-E Contactor ,400A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil w/ PLC Interface , 1 N.O. 1 N.C.

Contactor, IEC, 400 A, 100-250V 50-60 Hz/100-250V DC, 3 NO Poles, 1 NO 1 NC Auxiliary Contacts, With 24V DC PLC Interface, Bus BarConnections

Egenskaper for produkt/familie

  • Complies with RoHs
  • Meets IEC, UL, and CSA standards requirements
  • Saves energy with low power consumption
  • Simplifies selection with electronic wide-range AC/DC coils
  • Includes built-in surge suppression
  • Available integrated PLC interface
Spesifikasjoner
Phases Three Phase
Contactor Type 100-E MCS-E Contactor
Contactor Size 400A, AC3 duty
Coil Type Electronic Coil w/ PLC Interface
Control Voltage 100-250V AC 50/60Hz / 100-250V DC Electronic Coil w/ PLC Interface
Auxiliary Contact Configuration 1 N.O. 1 N.C.
Terminal Type Bar Connections
Lengde 40.64
Høyde 34.29
Livssyklus Active
