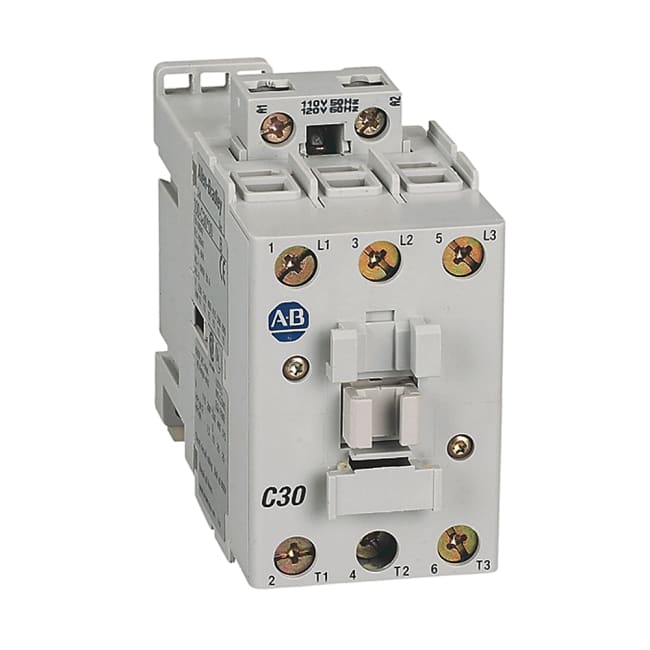

KONTAKTOR 30A AC3 230V50/60

Produktnummer: 100-C30KF00
Produktstatus:


inkl. mva.

Contactor, 30 A, 230V 50/60 Hz, AC, 3 Normally Open Poles, 230V AC 50/60 Hz, No Contact Configuration, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load

Egenskaper for produkt/familie

  • RoHs compliant
  • Provides reversible coil terminations (line or load side)
  • Includes electronic and pneumatic timing modules
  • Offers common accessories for all contactor sizes
  • Includes built-in surge suppression
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
  • Provides front and side mounting of auxiliary contacts
  • Includes reversible coil terminations (line or load side)
  • Provides IP2X finger protection
  • Meets IEC, UL, and CSA standards requirements
  • Includes space-saving coil-mounted control modules
Spesifikasjoner
100 100-C or 104-C Contactor
130 Right Side Auxiliary Contact
110 Front Mounted Auxiliary Contact
140 Interlock
120 Left Side Auxiliary Contact
70 Electrical Standards
80 Utilization Category
170 3-Phase kW (50 Hz) 400V/415V Rating
190 3-Phase kW (50 Hz) 690V Rating
180 3-Phase kW (50 Hz) 500V Rating
230 3-Phase HP (60 Hz) 575V Rating
220 3-Phase HP (60 Hz) 460V Rating
160 3-Phase kW (50 Hz) 230V Rating
210 3-Phase HP (60 Hz) 230V Rating
150 Connection
200 3-Phase HP (60 Hz) 200V Rating
10 Rated Operating Current, AC-3
30 No. of Poles
50 Contact Configuration
20 Coil Voltage
0 Terminal Type
60 Package Quantity
40 Coil Termination
90 Actual Life
Lengde 11.913
Høyde 5.207
Livssyklus Active
