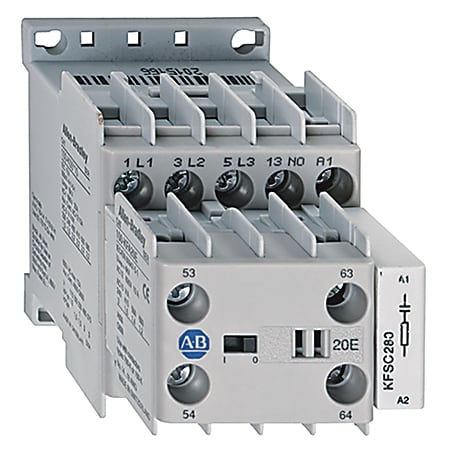

KONTAKTOR 3-pol 12A AC3 230AC m/1NO

Produktnummer: 100-K12KF10
Produktstatus:


inkl. mva.

Miniature Contactor, Screw Type Terminals, 12 A, System Control Voltage: 230V 50/60Hz, 3 N.O. Main Contacts, 1 N.O. Auxiliary Contact, 1

Miniature Contactor, 12 A, IEC, 230V 50/60Hz, 3 N.O. Poles, 1 N.O. Auxiliary Contact, Screw Type Terminals, Single Pack: Quantity of 1
Spesifikasjoner
3-Phase kW (50 Hz) 400V/415V Rating 5.5
3-Phase kW (50 Hz) 690V Rating 5.5
3-Phase kW (50 Hz) 500V Rating 5.5
1-Phase HP (60 Hz) 115V Rating 0.75
Coil Voltage 230V 50/60Hz
Connection Screw Type Terminals
Contactor Size 12 A
3-Phase HP (60 Hz) 575V Rating 7.5
3-Phase HP (60 Hz) 460V Rating 7.5
Auxiliary Contact Configuration 1 N.O.
Control Voltage 230V 50/60Hz
Package Quantity 1
Rated Operating Current 12 A
Terminal Type Screw Type Terminals
Main Contact Configuration 3 N.O.
No. of Poles 3 Poles
Opprinnelsesland CH
Tolltariffnummer 85364900
Lengde 5.999
Høyde 4.801
Livssyklus Active
