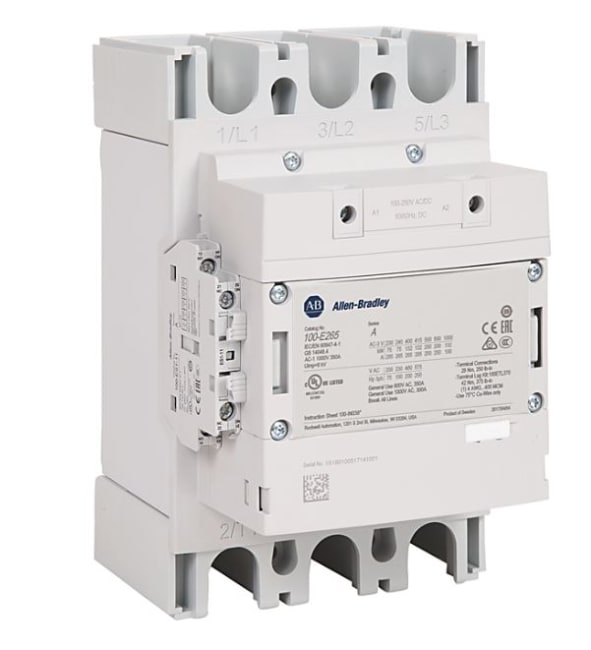

Kontaktor 265A AC-3, 100-250VAC/DC U/PLS IN

Produktnummer: 100-E265KD11
Produktstatus:


inkl. mva.

100-E MCS-E Contactor ,265A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil , 1 N.O. 1 N.C.

Contactor, IEC, 265 A, 100-250V 50-60 Hz/100-250V DC, 3 NO Poles, 1 NO 1 NC Auxiliary Contacts, Bus Bar Connections

Egenskaper for produkt/familie

  • Simplifies selection with electronic wide-range AC/DC coils
  • Meets IEC, UL, and CSA standards requirements
  • Available integrated PLC interface
  • Includes built-in surge suppression
  • Saves energy with low power consumption
  • Complies with RoHs
Spesifikasjoner
Contactor Type 100-E MCS-E Contactor
Coil Type Electronic Coil
Terminal Type Bar Connections
Contactor Size 265A, AC3 duty
Control Voltage 100-250V AC 50/60Hz / 100-250V DC Electronic Coil
Auxiliary Contact Configuration 1 N.O. 1 N.C.
Phases Three Phase
Lengde 28.118
Høyde 5.08
Livssyklus Active
