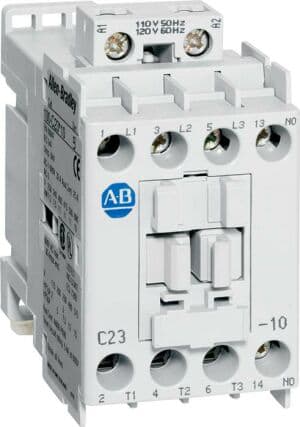

KONTAKTOR 23A AC3, 24VDC LAV EFF.NO
Produktnummer: 100-C23EJ10
Produktstatus:
inkl. mva.
100-C IEC Contactor, 24V DC Electronic Coil, Screw Terminals, Line Side, 23A, 1 N.O. 0 N.C. Auxiliary Contact Configuration, Single Pack
Contactor, 23 A, IEC, 24V50/60Hz/24VDC Elec Cl, Electronic, 3 Normally Open Poles, 24V DC Electronic, 1 NO Contacts & 0 NC Contacts, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load
| Spesifikasjoner | |
|---|---|
| Electrical Standards | UL |
| 3-Phase kW (50 Hz) 500V Rating | 13 |
| 3-Phase kW (50 Hz) 690V Rating | 10 |
| 3-Phase HP (60 Hz) 460V Rating | 15 |
| 3-Phase HP (60 Hz) 230V Rating | 7.5 |
| 3-Phase kW (50 Hz) 230V Rating | 7.5 |
| 3-Phase HP (60 Hz) 575V Rating | 15 |
| Connection | Screw Terminals |
| 3-Phase kW (50 Hz) 400V/415V Rating | 11 |
| Utilization Category | AC-3 Squirrel-cage motor starting and stopping |
| Interlock | None |
| 100-C or 104-C Contactor | 1_ |
| Right Side Auxiliary Contact | None |
| Front Mounted Auxiliary Contact | None |
| Left Side Auxiliary Contact | None |
| Actual Life | Actual Life Cannot be Calculated (more information)... |
| Package Quantity | 1 |
| Coil Termination | Line Side |
| Rated Operating Current, AC-3 | 23A |
| Contact Configuration | 1 N.O. 0 N.C. Auxiliary Contact Configuration |
| Coil Voltage | 24V DC Electronic Coil |
| Terminal Type | Screw Terminals |
| Opprinnelsesland | CH |
| Tolltariffnummer | 85364190 |
| Lengde | 9.195 |
| Høyde | 4.902 |
| Livssyklus | Active |
