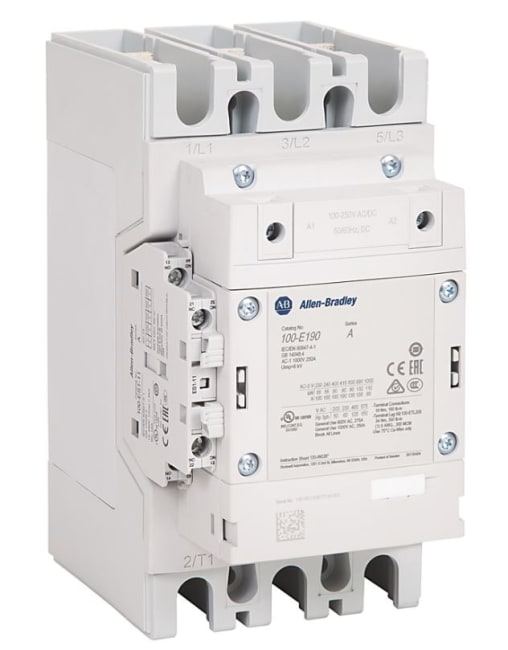

Kontaktor 190A, 110-250V AC/DC styrespenning, 1NO/1NC

Produktnummer: 100-E190KD11
Produktstatus:


inkl. mva.

100-E MCS-E Contactor ,190A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil , 1 N.O. 1 N.C.

Contactor, IEC, 190 A, 100-250V 50-60 Hz/100-250V DC, 3 NO Poles, 1 NO 1 NC Auxiliary Contacts, Bus Bar Connections

Egenskaper for produkt/familie

  • Complies with RoHs
  • Includes built-in surge suppression
  • Simplifies selection with electronic wide-range AC/DC coils
  • Meets IEC, UL, and CSA standards requirements
  • Available integrated PLC interface
  • Saves energy with low power consumption
Spesifikasjoner
Phases Three Phase
Contactor Type 100-E MCS-E Contactor
Contactor Size 190A, AC3 duty
Coil Type Electronic Coil
Control Voltage 100-250V AC 50/60Hz / 100-250V DC Electronic Coil
Auxiliary Contact Configuration 1 N.O. 1 N.C.
Terminal Type Bar Connections
Lengde 26.162
Høyde 16.764
Livssyklus Active
