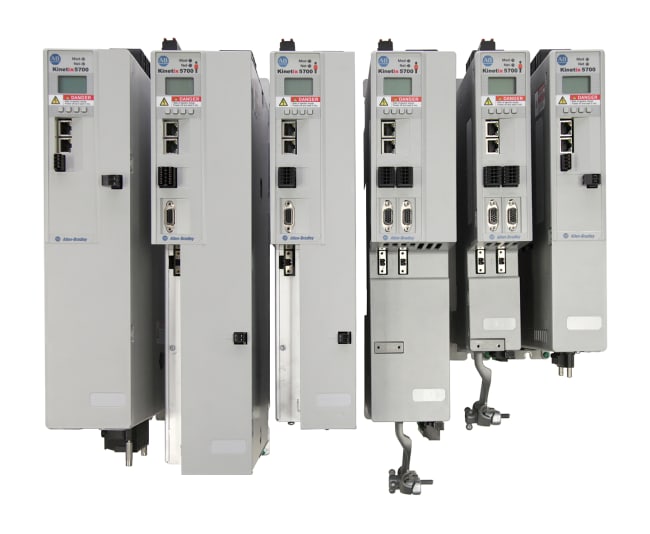

Kinetix 5700 Dual Axis Inverter

Produktnummer: 2198-D006-ERS3
Produktstatus:


inkl. mva.

2x2.5 Arms continuous, 2x6.0 Arms Peak output current

Egenskaper for produkt/familie

  • Offers integrated advanced safety
  • Delivers power density for reduced cabinet space
  • Reduces installation costs and cabinet space with integrated LC filter
  • Features dual axis modules
  • Controls servo and induction motors
  • Leverages EtherNet/IP to enable monitoring of energy usage
  • Provides direct energy cost savings by regenerating excess energy
  • Offers defense-in-depth to address different types of physical and electronic threats
  • Includes dual ethernet ports to support linear and device level ring topologies
  • Uses Load Observer real-time tuning technology
  • Reduces wiring with single cable technology
  • Provides a large 1.6 to 112kW power range
  • Offers defense in depth to address different types of physical and electronic threats
  • Performs common DC bus voltage regulation across entire AC input voltage range
  • Supports a wide range of feedback types
  • Offers an innovative snap-fit bus system
Spesifikasjoner
Type Axis Modules
Product Selection Note PLEASE NOTE: You will need to select a minimum of two Catalog Numbers to make this a valid Servo System. One will be a DC Bus Suppy, the other will be the Axis Module.
Axis Modules 2x2.5A Dual-axis Module 55mm
Network Media Remove Recommended Network Media from this Quote
Lengde 51.054
Høyde 13.97
Livssyklus Active
