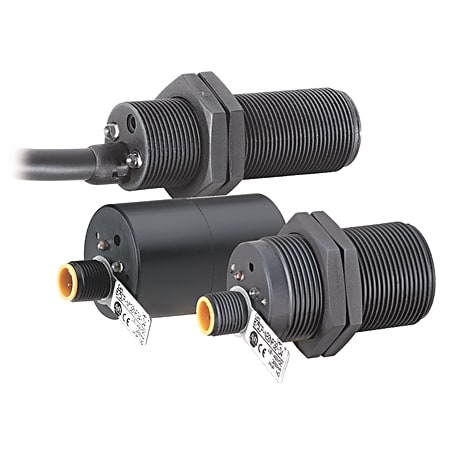

Kapasitiv sensor, justerbar, skjermet metall
Produktnummer: 875C-M10CN30-A2
Produktstatus:
inkl. mva.
Capatitive Proximity Sensor, Cylindrical Nickel Plated, Standard Barrel Housing, 30 mm Barrel Diameter, DC Shielded, 10 mm Sensing Distance, Normally Closed Sinking, 2 M PVC Cable
Egenskaper for produkt/familie
- Normally open or normally closed output
- Metal, nonmetal solid and liquid sensing capability
- Adjustable sensing distance
- Shielded metal (875C) and unshielded plastic (875CP) models
- Short circuit, overload, reverse polarity, transient noise protection
| Spesifikasjoner | |
|---|---|
| Type | 3-Wire DC Plastic Face/Threaded Nickel Plated Brass Barrel |
| Voltage Rating | 10-48V DC |
| Output | N.C., Sink (NPN) |
| Barrel Diameter | 30mm Threaded |
| Nominal Sensing Distance | 2mm to 10mm, Shielded |
| Proximity Sensor Type | 3-Wire DC Plastic Face/Threaded Nickel Plated Brass Barrel |
| Output Configuration | N.C., Sink (NPN) |
| Connection Type | 3-Wire DC PVC Cable (3 Conductors) |
| Lengde | 20.295 |
| Høyde | 8.306 |
| Livssyklus | Active |
