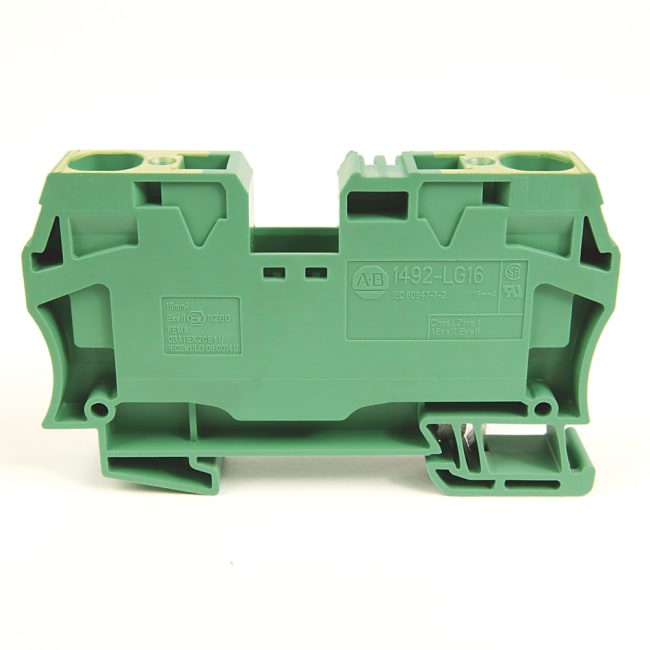

Jordklemme fjær 16mm2
SKU: 1492-LG16
Product status:
incl. VAT
Spring Clamp Terminal Block,One-Circuit Feed-Through Ground Block,16 mm (# 14 AWG - # 4 AWG),Standard Feedthrough,Green / Yellow Stripe (Standard),
Terminal Block, Spring Clamp Connection, Feed Through Grounding, 12.1 x 82.5 x 43.5mm (0.476 x 3.25 x 1.71 in), 1 Pole, Green/Yellow, Pkg. Qty. of 25, WIRE RANGE (Rated Cross Section) √ UR - #14α6 AWG, CSA - #14α4 AWG, IEC - 16 mmª, ATEX - #16α6 AWG
Properties for product/family
- Helps reduce wiring time by more than 50%
- Secure contact is durable under extreme conditions
- Screwless termination technology
- Wide range of accessories available
- Requires only a flat-head screwdriver for installation
- Maintenance-free, no need to retighten
| Specifications | |
|---|---|
| Hazardous Location | No |
| Base Block Style | Grounding Blocks |
| Base Block Type | One-Circuit Feed-Through Ground Block |
| Features | Standard Feedthrough |
| Maximum Wire Size & Rating | UL: 14-6 AWG CSA: 14-4 AWG IEC: 16mm² EEx e II: 16mm²/16-6 AWG |
| Color | Green / Yellow Stripe (Standard) |
| Opprinnelsesland | RO |
| Tolltariffnummer | 85363030 |
| Lengde | 1.3 |
| Høyde | 8.001 |
| Livssyklus | Active |
| Data sheet | ||
|---|---|---|
|
