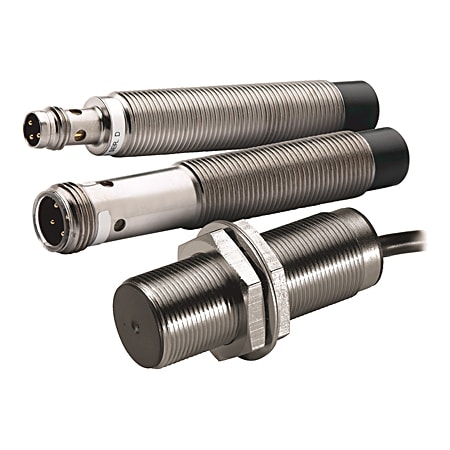

Inductive Prox Sensor, Nickel Brass Inductive Sensor, 30 mm Barrel Diameter, DC Standard, 15 mm Sensing Distance, Standard Barrel, Normally Open 2 Wire, 4 Pin DC Micro QD
Properties for product/family
- Includes highly-visible status indicator
- Provides short circuit, overload, transient noise, false pulse, and reverse polarity protection
- Applications include:
- Includes threaded, nickel-plated brass barrels
- 80;889D-F4AC-5
| Specifications | |
|---|---|
| Application | 2-Wire DC |
| Sensing Distance | 15mm |
| Special Features | Standard |
| Output | N.O., Sink (NPN) or Source (PNP) |
| Connection | Micro Quick-Disconnect (DC) |
| Voltage Rating | 10 - 30V DC |
| Proximity Sensor Type | 2-Wire DC |
| Barrel Diameter | 30mm |
| Nominal Sensing Distance | 15mm |
| Shielding | Unshielded |
| Barrel Type | Standard |
| Output Configuration | N.O., Sink (NPN) or Source (PNP) |
| Connection Type | Micro Quick-Disconnect (DC) |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Lengde | 9.601 |
| Høyde | 5.309 |
| Livssyklus | Active |
