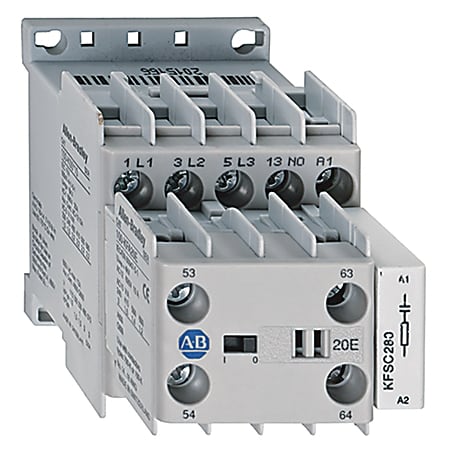

IEC 5 A Miniature Contactor
Produktnummer: 100-K05D400
Produktstatus:
inkl. mva.
Miniature Contactor, 5 A, IEC, 110V 50Hz/120V 60Hz, 4 N.O. Poles, No Auxiliary Contact, Screw Type Terminals, Single Pack: Quantity of 1
Egenskaper for produkt/familie
- Mirror contacts per IEC 60947-4-1 and mechanically linked contacts per IEC 60947-5-1 on main unit
- Compact size
- Compatible with Bulletin 193-K bimetallic overload relay
- Same dimensions for AC and DC
- IP2X finger protection
- Full-voltage non-reversing and reversing contactors
- Optional integrated surge suppressor
| Spesifikasjoner | |
|---|---|
| Control Voltage | 110V 50Hz/120V 60Hz |
| Rated Operating Current | 5 A |
| Terminal Type | Screw Type Terminals |
| Main Contact Configuration | 4 N.O. |
| Package Quantity | 1 |
| No. of Poles | 4 Poles |
| 3-Phase kW (50 Hz) 400V/415V Rating | 2.2 |
| Contactor Size | 5 A |
| 3-Phase kW (50 Hz) 230V Rating | 1.5 |
| 1-Phase HP (60 Hz) 115V Rating | 0.5 |
| 3-Phase kW (50 Hz) 690V Rating | 2.2 |
| 3-Phase kW (50 Hz) 500V Rating | 2.2 |
| Coil Voltage | 110V 50Hz/120V 60Hz |
| Connection | Screw Type Terminals |
| 3-Phase HP (60 Hz) 200V Rating | 1.5 |
| 3-Phase HP (60 Hz) 230V Rating | 1.5 |
| Lengde | 5.207 |
| Høyde | 5.893 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 100-td013_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
2-Dimensional Drawing (DWG/DXF) Filnavn: 100-k_700-k.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: 100K.jpg Filtype: image/png |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: 100-K_700-K Filtype: application/x-zip-compressed |
Last ned |
