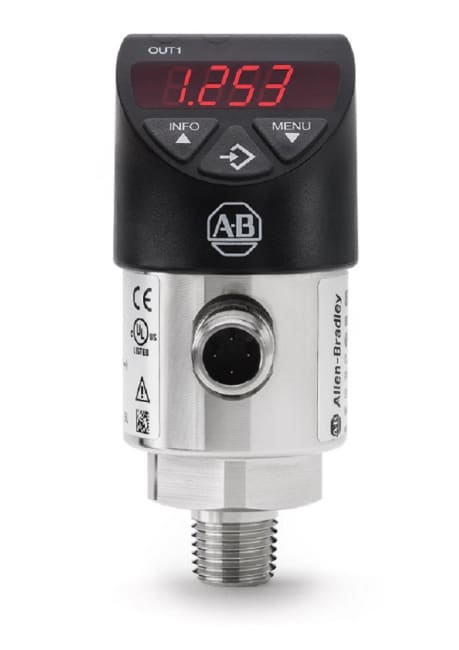

Hygienic Solid-State Pressure Sensor with Display
Produktnummer: 836PH-D1T1GA30PA-D4
Produktstatus:
inkl. mva.
Solid-State Pressure Sensor, Hygienic, Display/ Push Button, -14.5 psi, Switch, 1.5" Tri-Clamp Sanitary, Gauge, 30 psi, 1xPNP1x Analog IO-Link, 4 Pin DC Micro (M12), 15 – 30V DC
Egenskaper for produkt/familie
- IP67 enclosure rating
- Provides rotatable display 180°
- Provides compact form factor
- Offers a rugged, corrosion-resistant 316L stainless steel sensing element
| Spesifikasjoner | |
|---|---|
| Bulletin Number | 836P - Solid-State Pressure Sensor |
| Sensor Model Type | Sanitary/Hygienic |
| Display Type | Display/Push-button |
| Low Pressure Range | -14.5 psi ( -1 bar ) |
| Process Connection Type | 1.5" Tri-Clamp Sanitary |
| Measurement Type | Gauge |
| Upper Pressure Range | 30 psi (2.06 bar) |
| Output Type | 1xPNP x 1 Analog(4-20 mA) IO-Link |
| Connection type | 4-Pin DC Micro(M12) |
| IO Link Enabled | Yes |
| Lengde | 23.241 |
| Høyde | 17.145 |
| Livssyklus | Active |
