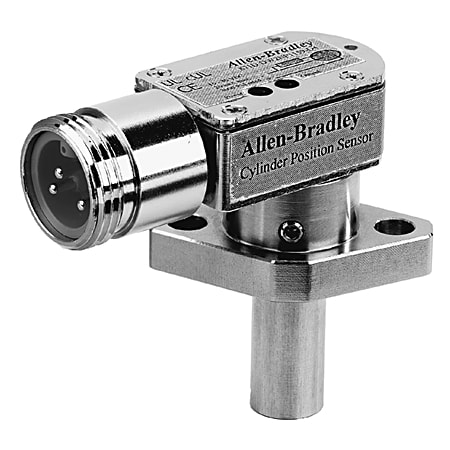

Hydraulic Cylinder Position Sensor

Produktnummer: 871D-BW2N317-N3
Produktstatus:


inkl. mva.

Inductive Sensor, in Port Cylinder Position, WFI, 31.7 mm Probe Length, AC/DC, 2 mm Sensing Distance, Normally Open, 3 Pin AC Mini Quick Disconnect

Egenskaper for produkt/familie

  • Withstands pressures up to 3000 psi
  • Low profile housing can be rotated 304° without breaking pressure seal
  • 3-wire DC and 2-wire AC/DC versions with either mini- or micro-style connectors
  • Weld field immune
  • Shielded construction
  • Applications include:
  • Short circuit, overload, transient noise, false pulse and reverse polarity protection
  • Stainless steel probe with ceramic face
Spesifikasjoner
Voltage Rating 20-250V AC/DC
Output N.O.
Connection Type Mini Quick-Disconnect
Output Configuration N.O.
Proximity Sensor Type 2-Wire AC/DC
ProbeLength 31.7mm, White Color Code
Lengde 9.703
Høyde 3.404
Livssyklus Active
