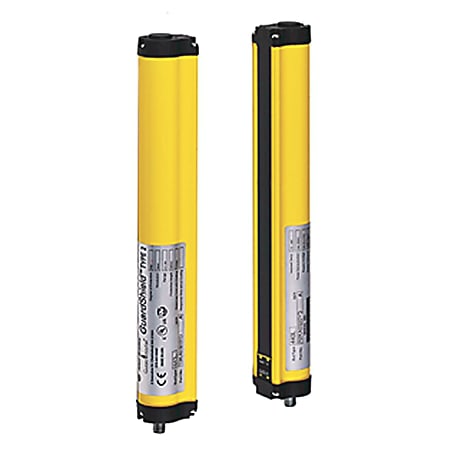

GuardShield Std, IP65, 30mm oppløsning, Type 4, L= 800mm
Produktnummer: 440L-P4K0800YD
Produktstatus:
inkl. mva.
GuardShield Safety Light Curtain, Res 30mm, Pt Ht 800mm, 40 Beams
GuardShield, Type4 0800-30mm, Pair, GuardShield 30 mm Resolution, 800 mm Protective Height, Micro Quick Disconnector, IP65
Egenskaper for produkt/familie
- Provides efficient connectivity through M12 quick-disconnects
- Offers advanced functions:
- Offers multiple model:
| Spesifikasjoner | |
|---|---|
| Type of Unit | Pair (Transmitter Tx and Receiver Rx) |
| Beams | 40 |
| Resolution | 30mm (1.18in.) Scanning Ranges: 0.3...16m (0.98...52 ft) |
| Protected Height | 800mm (31.5 in) |
| Integrated Laser Alignment | No |
| System Connector | Micro style quick-disconnect M12 (Tx: 4 or 5-pin, Rx: 8-pin) |
| Length | 916 mm (36.1 in) |
| Opprinnelsesland | MX |
| Tolltariffnummer | 85365019 |
| Lengde | 19.99 |
| Høyde | 13.995 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440l-um003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
User Manual Filnavn: 440l-um003_-en-p.pdf Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: 440L4_ph.jpg Filtype: image/png |
Last ned | |
|
Wiring Diagram Filnavn: 440L_GuardShield_Wiring_Diagram.jpg Filtype: image/png |
Last ned | |
|
Dimensions Filnavn: 440L_GuardShield_Dimensions.jpg Filtype: image/png |
Last ned | |
|
Product Overview Filnavn: SafetyLightCurtains_Overview.pdf Filtype: application/pdf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: 440l-gnyn-40800 Filtype: application/x-zip-compressed |
Last ned | |
|
Installation Instructions Filnavn: GuardShield_20857.pdf Filtype: application/pdf |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: 440l-gnyn-40800.pdf Filtype: application/pdf |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: 440l-gnyn-40800.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Specifications Filnavn: 440L_GuardShield_Specs.jpg Filtype: image/png |
Last ned | |
|
ABSAD050.dwg Filnavn: ABSAD050.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABSAD050.dxf Filnavn: ABSAD050.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABSAD050.pdf Filnavn: ABSAD050.pdf Filtype: application/pdf |
Last ned | |
|
ABSAD050.wmf Filnavn: ABSAD050 Filtype: application/x-msmetafile |
Last ned | |
|
ABSAD051.dwg Filnavn: ABSAD051.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABSAD051.dxf Filnavn: ABSAD051.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABSAD051.pdf Filnavn: ABSAD051.pdf Filtype: application/pdf |
Last ned | |
|
ABSAD051.wmf Filnavn: ABSAD051 Filtype: application/x-msmetafile |
Last ned |
