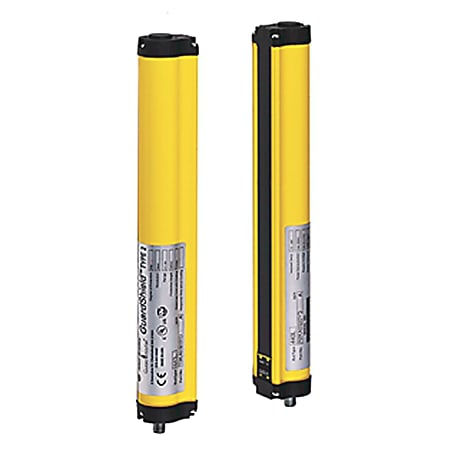

GuardShield, ILA, IP65, 30mm oppløsning, Type 4, L= 320mm
Produktnummer: 440L-P4KL0320YD
Produktstatus:
inkl. mva.
GuardShield Safety Light Curtain, Res 30mm, Pt Ht 320mm, 16 Beams, Integrated Laser Alignment
Safety Light Curtain, GuardShield, Type 4, POC, Pair, Resolution 30mm, Protected Height 320mm, with Laser,
Egenskaper for produkt/familie
- Offers advanced functions:
- Provides efficient connectivity through M12 quick-disconnects
- Offers multiple model:
| Spesifikasjoner | |
|---|---|
| Beams | 16 |
| System Connector | Micro style quick-disconnect M12 (Tx: 4 or 5-pin, Rx: 8-pin) |
| Integrated Laser Alignment | Yes |
| Type of Unit | Pair (Transmitter Tx and Receiver Rx) |
| Protected Height | 320mm (12.6 in) |
| Resolution | 30mm (1.18in.) Scanning Ranges: 0.3...16m (0.98...52 ft) |
| Length | 516 mm (20.3 in) |
| Opprinnelsesland | MX |
| Tolltariffnummer | 85365019 |
| Lengde | 70.104 |
| Høyde | 13.589 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440l-um003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Installation Instructions Filnavn: GuardShield_20857.pdf Filtype: application/pdf |
Last ned | |
|
Dimensions Filnavn: 440L_GuardShield_Dimensions.jpg Filtype: image/png |
Last ned | |
|
Photo Filnavn: 440L4_ph.jpg Filtype: image/png |
Last ned | |
|
Product Overview Filnavn: SafetyLightCurtains_Overview.pdf Filtype: application/pdf |
Last ned | |
|
Wiring Diagram Filnavn: 440L_GuardShield_Wiring_Diagram.jpg Filtype: image/png |
Last ned | |
|
User Manual Filnavn: 440l-um003_-en-p.pdf Filtype: application/pdf |
Last ned | |
|
Specifications Filnavn: 440L_GuardShield_Specs.jpg Filtype: image/png |
Last ned |
