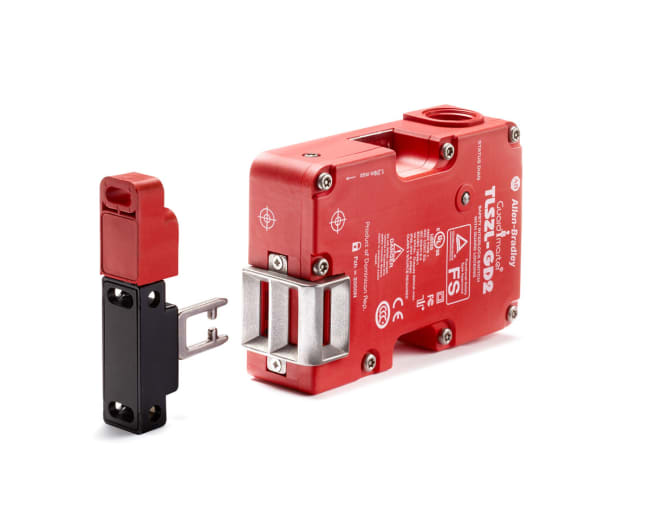

Guardmaster TLS-Z GD2 Guardlock Switch
Produktnummer: 440G-TZS21UPRH
Produktstatus:
inkl. mva.
Guardlock Switch, TLS-Z GD2, Power To Release, 24V DC, 2 N.C. Safety, 1 N.O Aux, Solid State Contacts, Fully Flex, 8 Pin DC QD, Plastic
Egenskaper for produkt/familie
- 110;889D-F8AB-5
- 110;889D-F8NB-5
- 110;889D-F5NC-5
- Solid-state OSSD outputs connectable to ISO 14119
- Easy QD connection
- Uniquely coded RFID door sensor
- High locking force ≤2000 N (450 lb)
| Spesifikasjoner | |
|---|---|
| Product Family | 440G TLS-Z GD2 |
| Solenoid Voltage | 24V AC/DC |
| Contacts (Safety/Auxiliary) | 2 x PNP (0.2A max.), 1 x PNP (0.2A max.) - Lock status |
| Model Type | Power to Release |
| Holding Force (Fzh) | 2000N (450 lbs) |
| Solenoid Contacts | None |
| Actuator | Fully-Flex |
| Conduit Entry / Connection Type | 8-Pin Micro (M12) |
| BBM only | N/A |
| Cordsets | 889 DC Micro cable |
| Cordsets | DC Micro (M12), Female, Straight, 5-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 8-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Lengde | 17.018 |
| Høyde | 6.223 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440g-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3-Dimensional STEP model (STP) Filnavn: TLS_PLE_ASSY_2 Filtype: application/x-zip-compressed |
Last ned | |
|
Electrical Wiring Diagram (PDF) Filnavn: GLP%20Applications%20and%20Wiring%20Diagrams.pdf Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: TLSZL-GD2.jpg Filtype: image/png |
Last ned |
