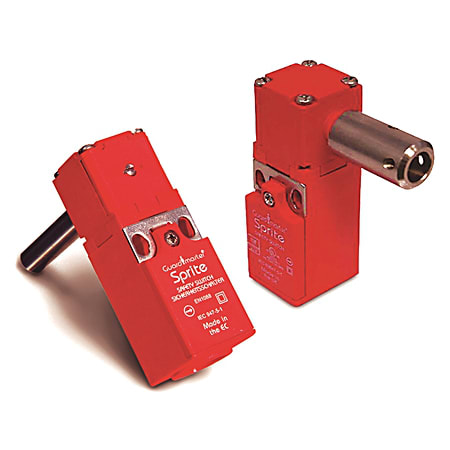

Sprite Miniature Hinge Interlock
Produktnummer: 440H-S34017
Produktstatus:
inkl. mva.
Hinge Switch - Sprite: Contacts: (Safety/Aux) 2 Normally Closed / None, BBM Preference: , Actuator Shaft: Length: 50MM Diameter: 10MM-Solid, Conduit Entry: M16 Conduit 1/2in Adaptor
Hinge Switch, Sprite, No Special Features, 2 N.C. Safety, 2 N.C. Safety Contacts, No Auxillary Contacts, Solid Hinge Shaft 50mmx10mm, Hinge Switch, M16 Conduit, 1/2in. NPT adptr, Plastic
Egenskaper for produkt/familie
- Ideal for small, lightweight guards
- Smallest hinge interlock switch available, 75 X 25 mm
- Cam-adjustable degree of operation
| Spesifikasjoner | |
|---|---|
| Pressure Range | 2 to 8 Bars |
| Pneumatic Fluid | Compressed air or neutral gas |
| Standard | IEC 60947-5-1, ISO 14119, ISOTR 12100 |
| Temperature | 10 to 60 degrees C (50 to 140 degrees F) |
| Mechanical Life | 1,000,000 Operations |
| Flow Rate | 138 NL/min. |
| Connection Type | Push in fittings for standard 4 mm diameter nylon tube, internal diameter 2.5 mm |
| Shaft Type | Solid |
| Actuator Shaft | Length: 50MM Diameter: 10MM |
| Product Family | Sprite |
| Contacts (Safety/Auxiliary) | 2 Normally Closed / None |
| Conduit Entry / Connection Type | M16 Conduit 1/2in Adaptor |
| Lengde | 21.001 |
| Høyde | 3.0 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440h-in004_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3-Dimensional STEP model (STP) Filnavn: 440H-S%2050mm%20Solid Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: 440-Sprite_PH.jpg Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: SPRITE_440H-S.dwg Filtype: image/vnd.dwg |
Last ned |
