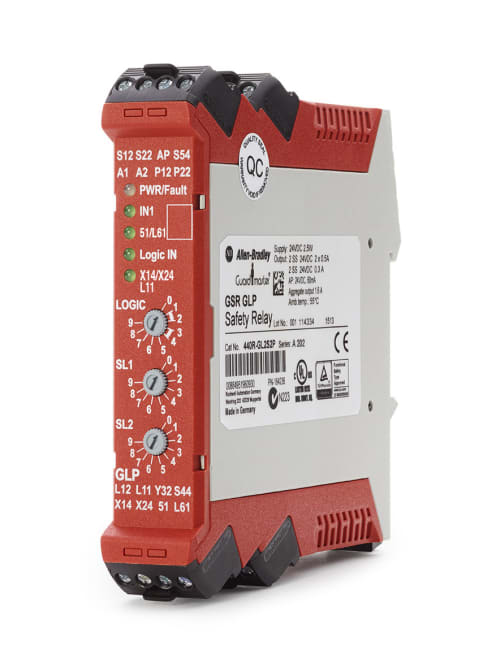

Guardmaster Safety Relays, GLP
inkl. mva.
Guardmaster Guardlocking Proximity Inputs Safety Relay (GLP), 1 Dual Channel Input, 2 PNP Proxes, 1 N.C. Solid State Auxiliary Output
Egenskaper for produkt/familie
- Provides versatility through simple logic, reset and timing configurations
- Includes single wire safety relay connection which allows for ease of installation and system flexibility
- Terminals are grouped together by power inputs and outputs for clear connection
- Offers a broad range of safety functions
- Offers compact solution which saves energy and space on DIN rail
- Provides consistent terminal layouts and configuration allow simplified installation
- Includes the Guardmaster Dual GuardLink safety relay, which provides visibility of system status down to the individual guard doors and e-stops when used with GuardLink-enabled smart safety devices
Spesifikasjoner | |
---|---|
Logic Configuration | Category 1 Stop / Safe Limited Speed Logic Rotary Configured |
Delayed Safety Outputs | N/A |
Power Supply | 24V DC |
Removable Terminals | Removable |
Inputs | 1 Dual Channel Input, 2 PNP Proxes |
Single Wire Safe Output | 1 SWS Output |
Single Wire Safe Input | 1 SWS Input |
Immediate Safety Outputs | 2 N.O. PNP Solid State |
Reset | Configured Automatic/Manual or Manual Monitored Reset |
Immediate Auxiliary Outputs | 1 N.C. Solid State |
Relay Model Selected | Guardmaster Guardlocking Proximity Inputs Safety Relay (GLP) |
Lengde | 12.395 |
Høyde | 3.2 |
Livssyklus | Active |
Datablad | ||
---|---|---|
Spec Sheet Filnavn: 440r-in064_-mu-p.pdf Filtype: application/pdf |
Last ned |
Nedlastinger | ||
---|---|---|
2-Dimensional Drawing (PDF) Filnavn: MSR142RTP.pdf Filtype: application/pdf |
Last ned | |
Photo Filnavn: GUARDGLP_PH.jpg Filtype: image/png |
Last ned | |
2-Dimensional Drawing (DXF) Filnavn: MSR142RTP.dwg Filtype: image/vnd.dwg |
Last ned |
