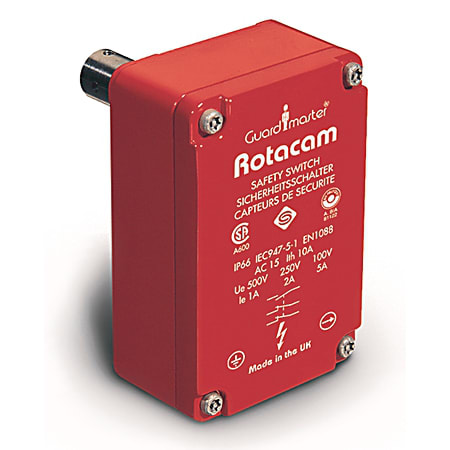

Rotacam Heavy-duty Hinge Interlock
Produktnummer: 440H-R03078
Produktstatus:
inkl. mva.
Hinge Switch - Rotacam: Contacts: (Safety/Aux) 2 Normally Closed / 1 Normally Open, BBM Preference: Break Before Make, Actuator Shaft: Length: 30MM Diameter: 16MM-Pre-Bored, Conduit Entry: M20 Conduit 1/2in Adaptor
Hinge Switch, Rotacam, No Special Features, 2 N.C. Safety, 1 N.O Aux, 2 N.C. Safety Contacts, Break Before Make, 1 N.O. Auxillary Contact, Hollow Hinge Shaft 30mmx16mm, M20 Conduit, 1/2in. NPT adptr, Hinge Switch, Die Cast Alloy (red)
Egenskaper for produkt/familie
- Cam-adjustable degree of operation
- Isolates power within 5° of door movement
- Robust die-cast case
- Suitable as a hinge pin on light- and medium weight guard doors
- Two N.C. and 1 N.O. contacts (sealed to IP66)
| Spesifikasjoner | |
|---|---|
| Product Family | Rotacam |
| Conduit Entry / Connection Type | M20 Conduit 1/2in Adaptor |
| BBM or MBB | Break Before Make |
| Actuator Shaft | Length: 30MM Diameter: 16MM |
| Contacts (Safety/Auxiliary) | 2 Normally Closed / 1 Normally Open |
| Shaft Type | Pre-Bored |
| Pneumatic Fluid | Compressed air or neutral gas |
| Connection Type | Push in fittings for standard 4 mm diameter nylon tube, internal diameter 2.5 mm |
| Temperature | 10 to 60 degrees C (50 to 140 degrees F) |
| Standard | IEC 60947-5-1, ISO 14119, ISOTR 12100 |
| Pressure Range | 2 to 8 Bars |
| Mechanical Life | 1,000,000 Operations |
| Flow Rate | 138 NL/min. |
| Lengde | 15.189 |
| Høyde | 7.188 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440h-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: 440-Rotacam_PH.jpg Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: ROTACAM_440H-R.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: 440H-R%20Pre-bored Filtype: application/x-zip-compressed |
Last ned |
