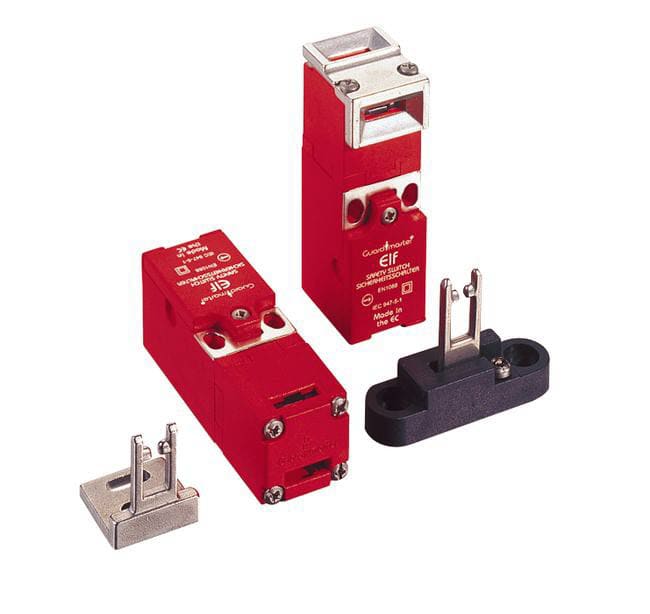

Tongue Interlock, Elf, No Special Features, 1 N.C. Safety, 1 N.O Aux, Break Before Make, 1 N.C. Safety Contact, 1 N.O. Auxillary Contact, No Actuator, Tongue Interlock Switch, M16 Conduit, Plastic
Properties for product/family
- Ideal for small, lightweight guards
- Miniature housing is only 75 x 25 x 29 mm (2.95 x 0.98 x 1.14 in.)
- Environmental protection: IP67
- Eight possible actuator entry points, easy to install
- Strong and versatile, can be used in most applications
| Specifications | |
|---|---|
| Product Family | Elf |
| Contacts (Safety/Auxiliary) | 1 Normally Closed, 1 Normally Open |
| Housing Type | Plastic |
| BBM or MBB | Break Before Make |
| Actuator | No Actuator |
| Conduit Entry / Connection Type | M16 Conduit |
| Lengde | 12.395 |
| Høyde | 4.089 |
| Livssyklus | Active |
| Data sheet | ||
|---|---|---|
|
Spec Sheet File name: 440k-in001_-en-p.pdf File type: application/pdf |
Download |
