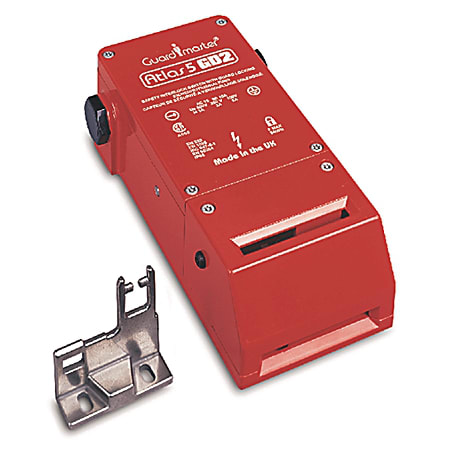

Atlas 5 Guard Locking Switch
Produktnummer: 440G-L07255
Produktstatus:
inkl. mva.
Guard Locking Switch - 440G Atlas 5: Solenoid Voltage: 24V AC/DC, Contacts(Safety and Aux): 2 Normally Closed, 1 Normally Open, Actuator: Standard, Conduit Entry: M20 Conduit
Guardlock Switch, Atlas 5, Left Hand Key Lock, 24V ACDC, 2 N.C. 1 N.O., 2 N.C. Safety, 2 N.O Aux, 2 N.C. Safety Contacts, Standard Actuator, 2 N.O. Auxillary Contacts, Guardlocking Switch, M20 Conduit, Die Cast Alloy (red)
Egenskaper for produkt/familie
- 100;889D-F8NB-5
- 100;889D-F5NC-5
- High locking force of 5000 N (1124 lb)
- Heavy duty die-cast alloy housing
- Patented self-aligning head
- Mechanical lock
| Spesifikasjoner | |
|---|---|
| BBM only | N/A |
| Solenoid Voltage | 24V AC/DC |
| Product Family | 440G Atlas 5 |
| Actuator | Standard |
| Solenoid Contacts | 2 Normally Closed 1 Normally Open |
| Holding Force (Fzh) | 3850N (865 lbs) |
| Conduit Entry / Connection Type | M20 Conduit |
| Contacts (Safety/Auxiliary) | 2 Normally Closed, 1 Normally Open |
| Model Type | LH Key Lock |
| Cordsets | DC Micro (M12), Female, Straight, 5-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 8-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Lengde | 23.5 |
| Høyde | 8.001 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440g-in002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3-Dimensional STEP model (STP) Filnavn: 440g-l07xxx-lh-key Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: 440-Atlas5_PH.jpg Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: ATLAS5%20KEYLOCK%20440G-L.dwg Filtype: image/vnd.dwg |
Last ned |
