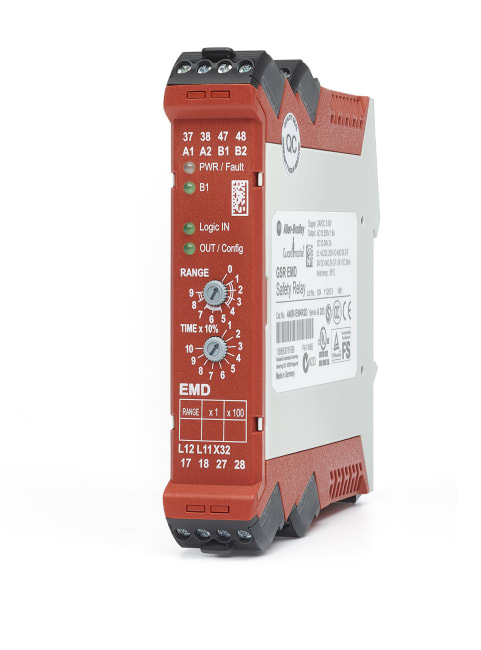

GSR EMD Expansion module Delayed

Produktnummer: 440R-EM4R2D
Produktstatus:


inkl. mva.

Guardmaster Expansion Module Delayed Outputs Safety Relay (EMD), Expansion Module (Single Wire Safe is only input), N/A Auxiliary Output

Expansion Module, Delayed Outputs (EMD), Guardmaster, Monitoring Safety Relay, Single Wire Safe Only Input, Zero Auxiliary Outputs

Egenskaper for produkt/familie

  • Provides consistent terminal layouts and configuration allow simplified installation
  • Offers a broad range of safety functions
  • Terminals are grouped together by power inputs and outputs for clear connection
  • Includes the Guardmaster Dual GuardLink safety relay, which provides visibility of system status down to the individual guard doors and e-stops when used with GuardLink-enabled smart safety devices
  • Includes single wire safety relay connection which allows for ease of installation and system flexibility
  • Offers compact solution which saves energy and space on DIN rail
  • Provides versatility through simple logic, reset and timing configurations
Spesifikasjoner
Immediate Auxiliary Outputs N/A
Immediate Safety Outputs N/A
Single Wire Safe Output 1 SWS Output
Removable Terminals Removable
Power Supply 24V DC
Single Wire Safe Input 1 SWS Input
Logic Configuration None
Delayed Safety Outputs 4 N.O.
Inputs Expansion Module (Single Wire Safe is only input)
Reset None / N/A
Relay Model Selected Guardmaster Expansion Module Delayed Outputs Safety Relay (EMD)
Opprinnelsesland DE
Tolltariffnummer 85369095
Lengde 12.09
Høyde 2.997
Livssyklus Active
