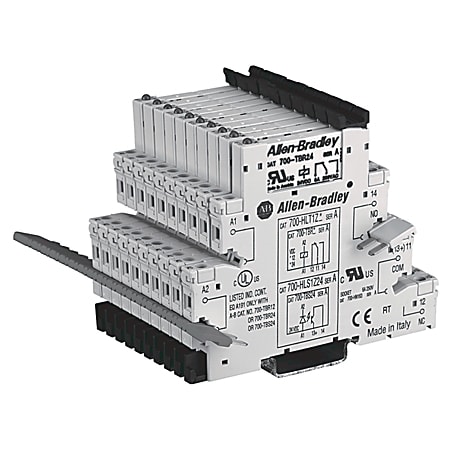

GP Terminal Block Relay, 120/125 V AC/DC (w/ LCSC), Solid State Relay Output, Screw Terminals, SSR, 6mm DC OUTPUT, Standard Silver Contacts, w/ Leakage Current Suppression, No Haz Loc Certification, The Std Package Is 10 Pc/Box
Egenskaper for produkt/familie
- Provides standard status indicator, reverse polarity protection, and surge protection
- Provides built-in retainer clip and snap-in marker lever
- Includes screw-type and spring-clamp terminal bases
- Offers timing range from 0.1 sec...6 hr
- Includes SPDT (relay)
- Offers leakage current suppression version
- Provides four timing functions
- Includes screw terminal bases
- Includes externally replaceable relay modules
- Includes relay and socket assembled interface modules for high density interposing or isolation applications
- Includes standard status indicator, reverse polarity protection and surge protection
- Includes built-in retainer clip and snap-in marker lever
- Offers externally replaceable relay modules
| Spesifikasjoner | |
|---|---|
| Output Relay Type | Solid State Relay Output |
| Connections | Screw Terminals |
| Build in 2.2mA Leakage Current Suppression Circuit | Yes |
| Coil Voltage | 120V AC & 125V DC |
| Contact Type | Solid State Relay |
| NOTE | The standard package is 10 pc/box |
| Lengde | 0.889 |
| Høyde | 0.787 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 700-td552_-en-p.pdf Filtype: application/pdf |
