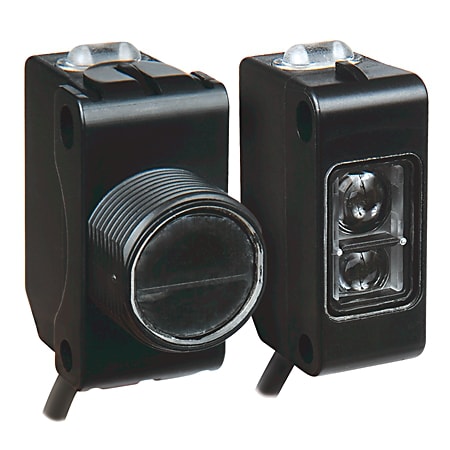

42JS Photoelectric Sensor

Produktnummer: 42JS-P2MPA2-F4
Produktstatus:


inkl. mva.

PHOTOSWITCH Photoelectric Sensor, VisiSight, Polarized Retroflective, Red, DC - 2 Complementary LO/DO Outputs, Source (PNP), 4-pin DC Micro QD on 152mm (6in) pigtail

Photoelectric Sensor, 42JS, Polarized Retroreflective, Visible Red LED, Complementary Light Operate andDark Operate, PNP Output, Adjustment Knob, 3.5 m Sensing Range, 4-pin Micro M12 on a150 mm Pigtail

Egenskaper for produkt/familie

  • 80;889D-F4AC-5
  • Clear object detection
  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Visible red LED light source for ease of alignment
  • Incorporates embedded IO-Link communication protocol in select 42JT sensors to help minimize downtime and increase productivity
  • Unique "auto PNP/NPN" output reduces stocking cost and simplifies installation and maintenance
  • Linear sensitivity adjustment knob or no adjustment models
  • IP69K and ECOLAB rated enclosure
  • IP67 rated enclosure
  • Color and contrast detection
  • Class 1 "Eye Safe" red laser beam
  • Teach push button for sensitivity and LO/DO selection
Spesifikasjoner
Sensitivity Adjustment Standard Adjustable
Light Source Visible Red
Sensing Range 3.5 m - Adjustable Range
Output Type Source (PNP)
Connection Type 4-pin DC Micro QD on 152mm (6in) pigtail
Operating Voltage/Mode DC - 2 Complementary LO/DO Outputs
Sensing Mode Polarized Retroreflective
Connection Media DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m
Sensing Beam Visible Red
Opprinnelsesland DO
Tolltariffnummer 85365019
Lengde 6.35
Høyde 1.27
Livssyklus Active
