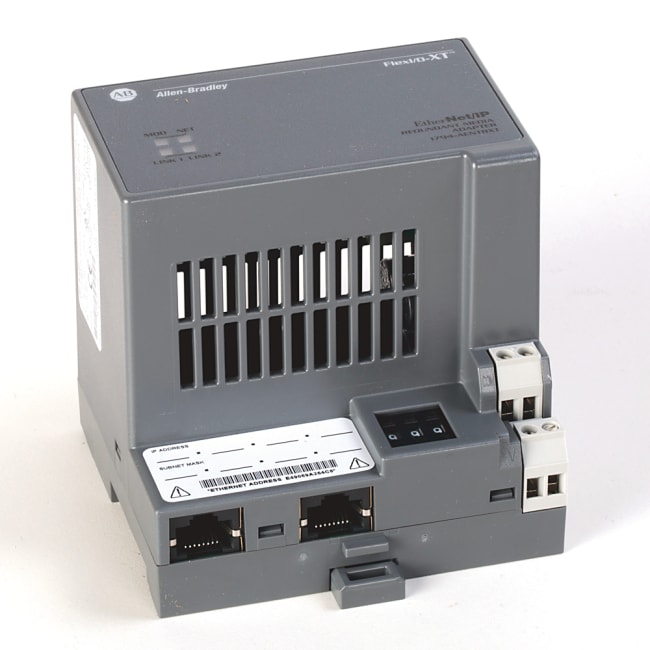

Flex XT EtherNet/IP Adapter
Produktnummer: 1794-AENTRXT
Produktstatus:
inkl. mva.
1794 Flex, Flex Ex, Flex XT I/O System, FLEX I/O Dual Port Ethernet/IP Adapter Module
Network Adapter, Flex I/O, EtherNet/IP, Dual Media, Extended Temperature -20 to +70 deg, 24VDC, Open Style, DIN Mount, IP20
| Spesifikasjoner | |
|---|---|
| Communication Adapters | FLEX I/O Dual Port Ethernet/IP Adapter Module |
| Conformal Coating | No |
| Extreme Temperature | Yes |
| Temperature Rating | -25 ...70 °C (-13...158 °F) |
| Type | EtherNet/IP Network Adapter |
| Communication Protocol | EtherNet/IP |
| Product Family | Communication Interfaces |
| Special Features | Dual Media |
| Opprinnelsesland | SG |
| Tolltariffnummer | 85176200 |
| Lengde | 13.462 |
| Høyde | 9.398 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1794-td014_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Sheet Filnavn: 1794-AENTRXT%20ASSY.pdf Filtype: application/pdf |
Last ned | |
|
3D STEP (STP) Model Filnavn: 1794_AENTR Filtype: application/x-zip-compressed |
Last ned | |
|
Product Profile Filnavn: 1794-pp019_-en-p.pdf Filtype: application/pdf |
Last ned |
