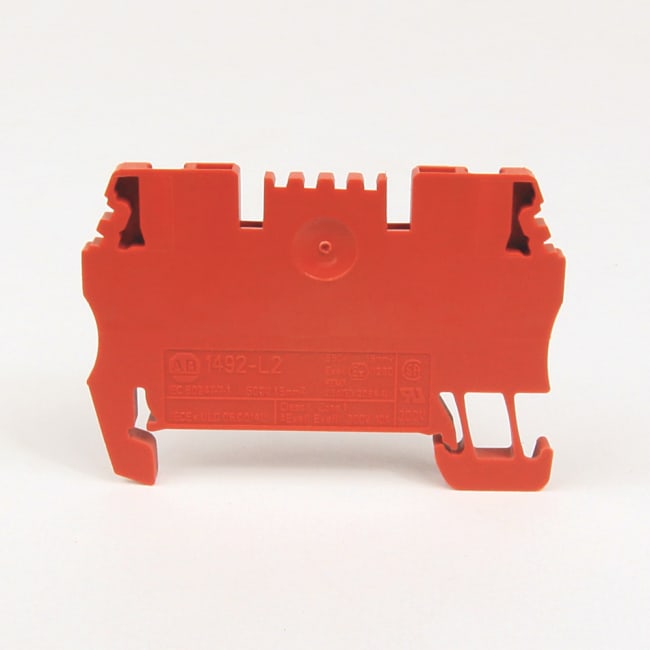

fjærklemme 1.5mm2 rød

Produktnummer: 1492-L2-RE
Produktstatus:


inkl. mva.

Spring Clamp Terminal Block,One-Circuit Feed-Through Block,1.5mm² (# 26 AWG - # 14 AWG),Standard Feedthrough,Red,

Terminal Block, Spring Clamp Connection, Feed Through, 3.5 x 51.5 x 29.5mm (0.138 x 2.03 x 1.16 in), 1 Pole, Red, Pkg. Qty. of 50, VOLTAGE RATING UR - 300V AC/DC, CSA - 300V AC/DC, IEC - 500V AC/DC, ATEX - 550V AC/DC, MAXIMUM CURRENT RATING UR - 15A, C

Egenskaper for produkt/familie

  • Maintenance-free, no need to retighten
  • Wide range of accessories available
  • Requires only a flat-head screwdriver for installation
  • Secure contact is durable under extreme conditions
  • Screwless termination technology
  • Helps reduce wiring time by more than 50%
Spesifikasjoner
Base Block Type One-Circuit Feed-Through Block
Maximum Wire Size & Rating UL: 26-14 AWG (15A @300V AC/DC) CSA: 26-14 AWG (20A @300V AC/DC) IEC: 1.5mm² (17.5A @500V AC/DC) EEx e II: 1.5mm² (15A @550V AC/DC)
Color Red
Features Standard Feedthrough
Special Features Standard Feedthrough
Hazardous Location No
Base Block Style Standard Feed-Through Blocks
Opprinnelsesland CZ
Tolltariffnummer 85369010
Lengde 9.6
Høyde 0.3
Livssyklus Active
