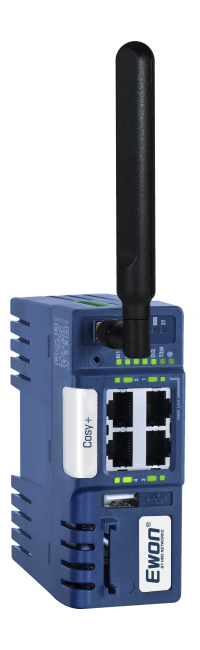

eWON, Cosy+ 4G North America u/antenne

Produktnummer: EC7133K-00MA


inkl. mva.

The Ewon Cosy+ is an industrial VPN gateway designed to offer secure remote access across the Internet, to machines and equipment at customers’ sites or in the field. 4G cellular connectivity for United States and Canada

Key Benefits

EASIER THAN EASY Straightforward setup, to make any machine IIoT-ready in a matter of minutes.
Easy device maintenance with firmware upgrade for Talk2M Pro customers.
Non-intrusive outbound connections, requiring no change on the existing network.
Reach your equipment in 2 clicks, wherever it is.
NO HIDDEN COSTS Start immediately with a free Talk2M account, supporting an unlimited number of devices and users.
Connect from any device, with the free desktop, web and mobile apps.
IT APPROVED Trusted chain from Hardware to the Cloud:
  • Hardware Root Of Trust brings security to the core of the hardware.
  • Secure Element, the perfect place to store crucial secrets.
  • Birth certificate to prevents cloning and counterfeiting.
  • Secure boot sequence ensuring that only code signed by Ewon is executed.
  • Restrictive list of most secured cypher suites to protect the communications with Talk2M.
Proven security posture:
  • Certified ISO 27001 & cybersecurity partnership with NVISO.
  • Solution based on the latest open standard technologies.

Manage the connectivity of all your machines and collaborators from one place.

READY TO USE AND RELIABLE 20+ data centers spread worldwide for coverage and maximal business continuity.
Global and reliable infrastructure, with an extensive Service Level Agreement.
Scalability: add at any time as many devices and users as you need.
Email & SMS relay services, to receive notifications from your machine.



PLC Connectivity

Remote access possibilities:

Using the Ewon Cosy, you can remotely connect to your PLC using its Ethernet port or its USB interface.

USB device support depends on the compatibility between the USB driver used on the PC and the Talk2M USB integration.

In principle, all PLC models with an Ethernet port are supported.

Below is a non-exhaustive list of some of the compatible devices for major PLC brands:

Rockwell Automation/Allen Bradley SLC5/500 Series (over Eth)
Micro/Compact/Control Logix Series (over Eth/USB)
Siemens S7-200/300/400/1200/1500 (over Eth)*
Logo (over Eth)
Schneider Electric TSX Series (over Eth)
M Series (M258, M340, ...) (over Eth/USB)
Mitsubishi Electric iQ-R, iQ-F series (over Eth)
Q, F, L series (over Eth)
VIPA Speed 7 series (over Eth)
OMRON C, CJ, CP, CS Series (over Eth/USB)
NJ, NX Series (over Eth/USB)
HITACHI

EH Series

KEYENCE

KV series

Yokogawa e-RT3 series, FA-M3V series



Technical Specifications

Bands

4G: B2, B4, B5, B12, B13, B14, B66, B71.
3G: B2, B5.
Automatic fallback to 3G.
Not compatible with Verizon and AT&T networks.

Security

Client : WPA, WPA2 and WEP.
Access Point : WPA2.

Antenna Connector

Type SMA - Female.

Antenna

Not included in the delivery.

WAN Ethernet

up to 3 ports,10/100 Mb Ethernet.

LAN Ethernet

up to 4 ports,10/100 Mb Ethernet.

Field interface Up to 10 USB 2.0 connections, female connector 2.0.
SD Card reader YES, for Cosy commissioning (firmware upgrade, backup, Talk2M registration).
Router

IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server.

Internet Outbound connection for Talk2M through port TCP 443 (and optionally port UDP 1194).
VPN Tunneling OpenVPN either in SSL UDP or TCP.
Talk2M

Talk2M Free+ or Talk2M Pro, natively supported.

VPN Security Communications between the remote user and the Ewon are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. All users and Ewon units are authenticated using x509 SSL certificates and end-to-end traffic is encrypted using strong symmetric & asymmetric algorithms that are part of the SSL/TLS protocol cipher suite.
Synchronization Embedded real-time clock, manual setup via the web interface or automatic via NTP.
File Management FTP server for configuration, firmware update.
Web-based configuration Embedded web interface with setup wizards for configuration and maintenance (no additional software needed). Basic authentication (login/password) and session control for security.
Mechanicals Dimensions: 108,80 x 99 x 43,60 mm (H x D x W).
DIN rail or wall screw fixing system.
Weight

217 gr.

Power supply 12-24 VDC +/-20%, LPS.
Temperature Range Operating: -25°C to +60°C, 10 to 95% relative humidity (non-condensing).
Storage: -30°C to +70°C, 10 to 95% relative humidity (non-condensing).
Hardware 1xDO: open drain ( MOSFET) 200mA; isolation 1.5kV,
2xDI: 0 to 24VDC; 1.5 kV isolation.
Marking cULus, FCC
Warranty 36 months



Certifications

Type tests

Temperature - Operating & Storage tested according to:

IEC 60068-2-1 Cold test
IEC 60068-2-2 Dry heat test
IEC 60068-2-14 Change of temperature
IEC 60068-2-30 Cyclic damp heat test

Vibration & shocks tested according to:

IEC 60068-2-27 Bumps
IEC 60068-2-64 Vibration (broad-band random)
IEC 60068-2-6 Vibration (sinusoidal)

FCC/IC



This product complies with the Part 15 of the FCC rules.



Safety

The product fulfils the requirements of:

EN IEC 62368-1:2020 + A11:2020
UL 62368-1 Third Edition, revised October 22, 2021
CAN/CSA C22.2 No. 62368-1: 19 Third Edition, revised October 22, 2021
