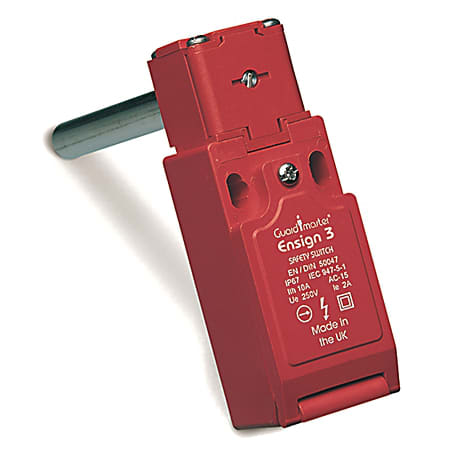

Ensign 3 Hinge Interlock

Produktnummer: 440H-E22027
Produktstatus:


inkl. mva.

Hinge Switch - Ensign 3: Contacts: (Safety/Aux) 2 Normally Closed / 1 Normally Open, BBM Preference: Break Before Make, Actuator Shaft: Length: 80MM Diameter: 10MM-Solid, Conduit Entry: M16 Conduit

Hinge Switch, Ensign 3, No Special Features, 2 N.C. Safety, 1 N.O Aux, 2 N.C. Safety Contacts, Break Before Make, 1 N.O. Auxillary Contact, Solid Hinge Shaft 80mmx10mm, Hinge Switch, M16 Conduit, Plastic

Egenskaper for produkt/familie

  • Fits on 25 mm tubing
  • Adjustable cam for changing degree of operation
  • 106 x 25 mm housing
Spesifikasjoner
Pneumatic Fluid Compressed air or neutral gas
Flow Rate 138 NL/min.
Pressure Range 2 to 8 Bars
Connection Type Push in fittings for standard 4 mm diameter nylon tube, internal diameter 2.5 mm
Temperature 10 to 60 degrees C (50 to 140 degrees F)
Standard IEC 60947-5-1, ISO 14119, ISOTR 12100
Mechanical Life 1,000,000 Operations
BBM or MBB Break Before Make
Contacts (Safety/Auxiliary) 2 Normally Closed / 1 Normally Open
Actuator Shaft Length: 80MM Diameter: 10MM
Conduit Entry / Connection Type M16 Conduit
Product Family Ensign 3
Shaft Type Solid
Opprinnelsesland DO
Tolltariffnummer 85365080
Lengde 11.989
Høyde 3.099
Livssyklus Active
