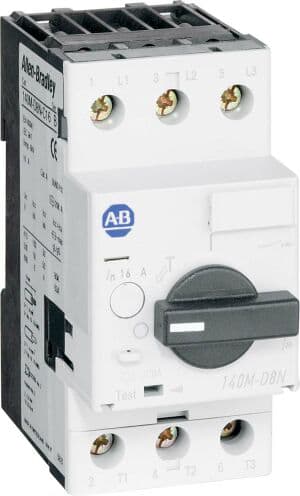

EFFEKTBRYTER 25A

Produktnummer: 140M-D8N-C25
Produktstatus:


inkl. mva.

MCP, Standard Magnetic Trip (Fixed at 13 x le), 25 A, High Performance, Frame Size D

Circuit-Breaker, Motor Circuit Protector, TheMaxRtgForMPCBs=630.0A, 25A, Frame Size D, High Breaking Capacity, No Bus Bar Mount, 25 A, No Knob Adaptor Modification, for Thermal Overloads, None, None, None, Std Mgntc Tr (Fxd at 13 x le)., None, UL 508 - Manual Motor Cntrlr, None, Trigger Constraints, None, No Options Right

Egenskaper for produkt/familie

  • Offers high switching capacity
  • Includes visible trip indication
Spesifikasjoner
Coordination Type Type 1
Type High Breaking Capacity
Supply Voltage 480V 60Hz
Circuit Breaker Type Motor Circuit Protector
Rated Operational Current (A) 25A
UL Listed Application Ratings UL 508 - Manual Motor Controller
Breaking Capacity High Breaking Capacity
Magnetic Trip Current (A) 325A Fixed
Application Standard Magnetic Trip (Fixed at 13 x le)
Frame Size Frame Size D
Side Mount Auxiliary and Trip Contacts (TESTDESC) None
Front Mount Auxiliary and Trip Contacts None
Side Mount Shunt Trip and Undervoltage Release None
Opprinnelsesland CH
Tolltariffnummer 85362010
Lengde 9.6
Høyde 4.9
Livssyklus Active
