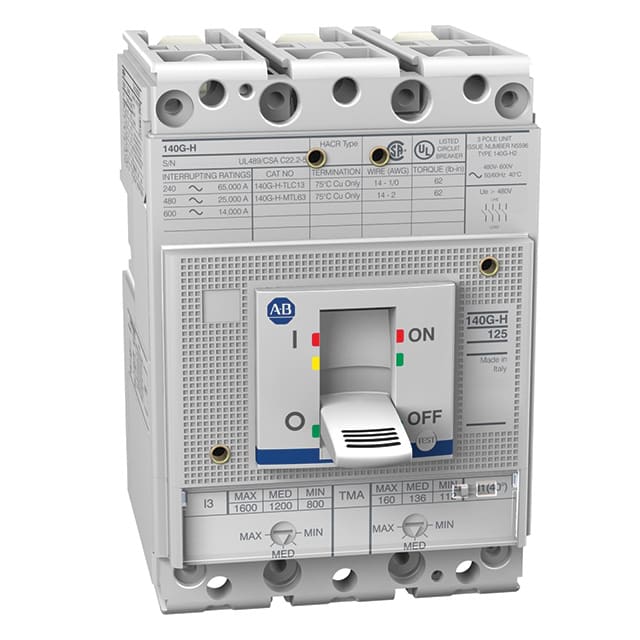

Effektbr.3-pol H str.125A Icu=36KA 400V just.term./magn.

Produktnummer: 140G-H2F3-D12
Produktstatus:


inkl. mva.

140G - Molded Case Circuit Breaker, H frame, 25 kA, T/M - Thermal Magnetic, 3 Poles, Rated Current 125 A

Molded Case Ckt-BKR, 125A H Frame, 25 kA at 480V, T/M - Adjst Thrm / Adjst Mgntc, 3 Poles, 125A, 80 Percent MCCB, No Bus Bar Mounting, NONE, None, NONE, None

Egenskaper for produkt/familie

  • Offers a wide range of accessories for global availability
  • Provides greater customization in trip units
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
Spesifikasjoner
Bulletin Number 140G - Molded Case Circuit Breaker
Frame/Rating H Frame (125 A)
Interrupting Rating, 50/60 Hz, 240V (kA) 65
Interrupting Rating, 50/60 Hz, 480V (kA) 25
Interrupting Rating, 50/60 Hz, 600V (kA) 14
Breaking Capacity, 50/60 Hz, 220V (kA) 65
Breaking Capacity, 50/60 Hz, 415V (kA) 36
Breaking Capacity, 50/60 Hz, 440V (kA) 36
Breaking Capacity, 50/60 Hz, 690V (kA) 10
Device Type 140G - Molded Case Circuit Breaker
Number of Poles 3 Poles
Frame Size H frame
Rated Current(A) 125 A
Protection T/M - Thermal Magnetic
Assembly Factory Assembled
Opprinnelsesland IT
Tolltariffnummer 85362090
Lengde 15.392
Høyde 21.311
Livssyklus Active
