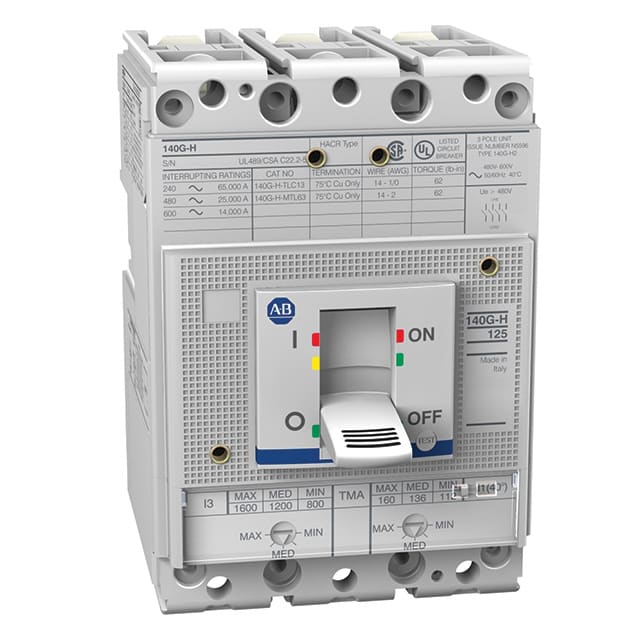

Effektbr.100A str H 3-pol Icu=70KA 400V just term./magn.

Produktnummer: 140G-H6F3-D10
Produktstatus:


inkl. mva.

140G - Molded Case Circuit Breaker, H frame, 65 kA, T/M - Thermal Magnetic, 3 Poles, Rated Current 100 A

Molded Case Circuit Breaker, 125A Frame, 100A, Thermal Magnetic, 65kA@480V, 70kA@415V, 3 Pole

Egenskaper for produkt/familie

  • Provides greater customization in trip units
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of accessories for global availability
Spesifikasjoner
Assembly Factory Assembled
Protection T/M - Thermal Magnetic
Frame Size H frame
Number of Poles 3 Poles
Device Type 140G - Molded Case Circuit Breaker
Rated Current(A) 100 A
Interrupting Rating, 50/60 Hz, 240V (kA) 150
Breaking Capacity, 50/60 Hz, 690V (kA) 15
Breaking Capacity, 50/60 Hz, 440V (kA) 65
Interrupting Rating, 50/60 Hz, 480V (kA) 65
Bulletin Number 140G - Molded Case Circuit Breaker
Breaking Capacity, 50/60 Hz, 220V (kA) 100
Frame/Rating H Frame (125 A)
Interrupting Rating, 50/60 Hz, 600V (kA) 25
Breaking Capacity, 50/60 Hz, 415V (kA) 70
Opprinnelsesland IT
Tolltariffnummer 85362090
Lengde 22.23
Høyde 13.46
Livssyklus Active
