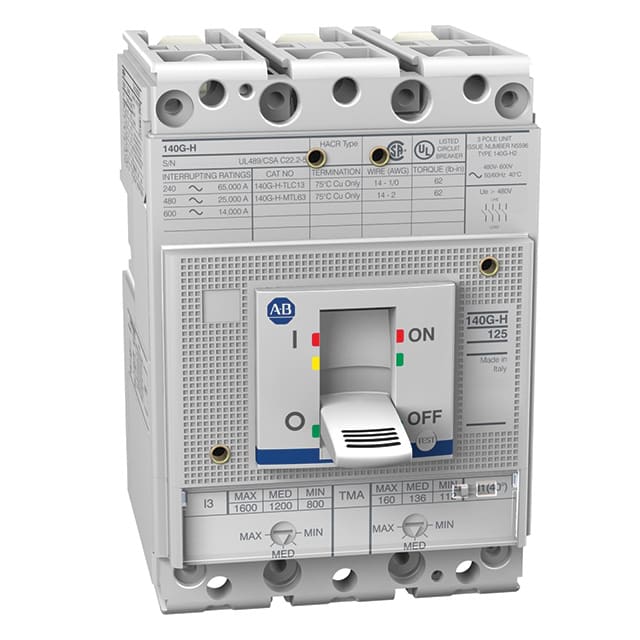

140G - Molded Case Circuit Breaker, H frame, 35 kA, T/M - Thermal Magnetic, 3 Poles, Rated Current 100 A
Egenskaper for produkt/familie
- Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
- Provides greater customization in trip units
- Offers a wide range of operating mechanisms to fit a variety of panel configurations
- Offers a wide range of accessories for global availability
Spesifikasjoner | |
---|---|
Bulletin Number | 140G - Molded Case Circuit Breaker |
Frame/Rating | H Frame (125 A) |
Interrupting Rating, 50/60 Hz, 240V (kA) | 100 |
Interrupting Rating, 50/60 Hz, 480V (kA) | 35 |
Interrupting Rating, 50/60 Hz, 600V (kA) | 18 |
Breaking Capacity, 50/60 Hz, 220V (kA) | 85 |
Breaking Capacity, 50/60 Hz, 415V (kA) | 50 |
Breaking Capacity, 50/60 Hz, 440V (kA) | 50 |
Breaking Capacity, 50/60 Hz, 690V (kA) | 12 |
Device Type | 140G - Molded Case Circuit Breaker |
Number of Poles | 3 Poles |
Frame Size | H frame |
Rated Current(A) | 100 A |
Protection | T/M - Thermal Magnetic |
Assembly | Factory Assembled |
Opprinnelsesland | IT |
Tolltariffnummer | 85362090 |
Lengde | 21.971 |
Høyde | 13.716 |
Livssyklus | Active |
