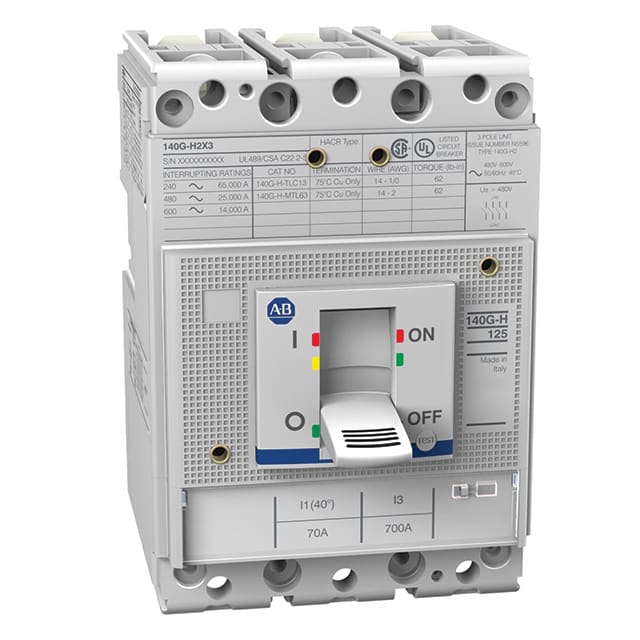

Effektbr. 50A str H 3-pol Icu=70KA 400V fast term./magn.
Produktnummer: 140G-H6C3-C50
Produktstatus:
inkl. mva.
140G - Molded Case Circuit Breaker, H frame, 65 kA, T/M - Thermal Magnetic, 3 Poles, Rated Current 50 A
Molded Case Ckt-BKR, 125A H Frame, 65 kA at 480V, T/M - Fixed Thrm / Fixed Mgntc, 3 Poles, 50A, 80 Percent MCCB, No Bus Bar Mounting, NONE, None, NONE, None
Egenskaper for produkt/familie
- Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
- Offers a wide range of operating mechanisms to fit a variety of panel configurations
- Offers a wide range of accessories for global availability
- Provides greater customization in trip units
| Spesifikasjoner | |
|---|---|
| Bulletin Number | 140G - Molded Case Circuit Breaker |
| Frame/Rating | H Frame (125 A) |
| Interrupting Rating, 50/60 Hz, 240V (kA) | 150 |
| Interrupting Rating, 50/60 Hz, 480V (kA) | 65 |
| Interrupting Rating, 50/60 Hz, 600V (kA) | 25 |
| Breaking Capacity, 50/60 Hz, 220V (kA) | 100 |
| Breaking Capacity, 50/60 Hz, 415V (kA) | 70 |
| Breaking Capacity, 50/60 Hz, 440V (kA) | 65 |
| Breaking Capacity, 50/60 Hz, 690V (kA) | 15 |
| Device Type | 140G - Molded Case Circuit Breaker |
| Number of Poles | 3 Poles |
| Frame Size | H frame |
| Rated Current(A) | 50 A |
| Protection | T/M - Thermal Magnetic |
| Assembly | Factory Assembled |
| Opprinnelsesland | IT |
| Tolltariffnummer | 85362010 |
| Lengde | 15.19 |
| Høyde | 21.69 |
| Livssyklus | Active |
