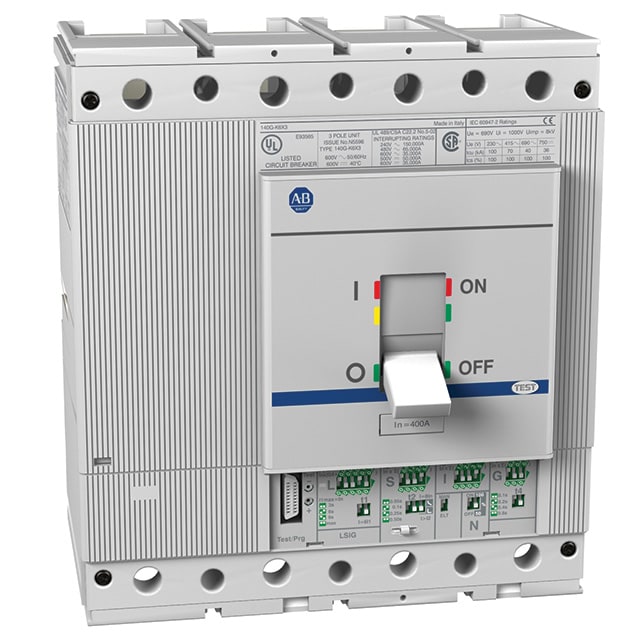

Effektbr.4-pol K str.250A Icu=50KA 400V just.term./magn.

Produktnummer: 140G-K3F4-D40
Produktstatus:


inkl. mva.

140G - Molded Case Circuit Breaker, K frame, 35 kA, T/M - Thermal Magnetic, 4 Poles, Rated Current 400 A

Molded Case Ckt-BKR, 400A K Frame, 35 kA at 480V, T/M - Adjst Thrm / Adjst Mgntc, 4 Poles, 400A, 80 Percent MCCB, No Bus Bar Mounting, NONE, None, NONE, None

Egenskaper for produkt/familie

  • Provides greater customization in trip units
  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of accessories for global availability
Spesifikasjoner
Breaking Capacity, 50/60 Hz, 415V (kA) 50
Interrupting Rating, 50/60 Hz, 480V (kA) 35
Interrupting Rating, 50/60 Hz, 500V DC (kA) 35
Breaking Capacity, 50/60 Hz, 220V (kA) 85
Interrupting Rating, 50/60 Hz, 240V (kA) 100
Interrupting Rating, 50/60 Hz, 600V (kA) 25
Bulletin Number 140G - Molded Case Circuit Breaker
Interrupting Rating, 50/60 Hz, 600V DC (kA) 25
Breaking Capacity, 50/60 Hz, 690V (kA) 25
Breaking Capacity, 50/60 Hz, 440V (kA) 40
Frame/Rating K Frame (400 A)
Number of Poles 4 Poles
Protection T/M - Thermal Magnetic
Device Type 140G - Molded Case Circuit Breaker
Rated Current(A) 400 A
Frame Size K frame
Assembly Factory Assembled
Opprinnelsesland IT
Tolltariffnummer 85362090
Lengde 29.997
Høyde 24.994
Livssyklus Active
