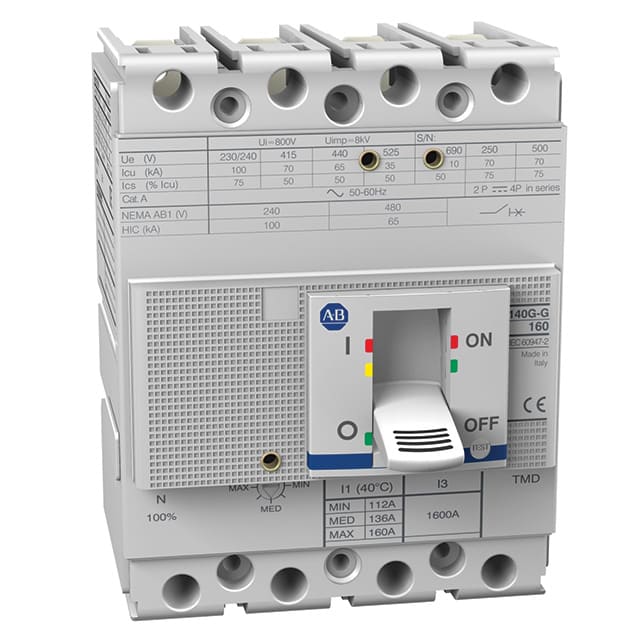

Effektbr.4-pol G str.160A Icu=50KA 400V fast.term./magn.

Produktnummer: 140G-G3E4-D16
Produktstatus:


inkl. mva.

140G - Molded Case Circuit Breaker, G frame, 35 kA, T/M - Thermal Magnetic, 4 Poles, Rated Current 160 A

Molded Case Circuit Breaker, G frame, 35 kA at 480V, T/M - Adjustable Thermal / Fixed Magnetic TMD, Rated Current 160 A (IEC only), 4 Pole, Interrupting Code G3

Egenskaper for produkt/familie

  • Offers a wide range of operating mechanisms to fit a variety of panel configurations
  • Provides greater customization in trip units
  • Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
  • Offers a wide range of accessories for global availability
Spesifikasjoner
Bulletin Number 140G - Molded Case Circuit Breaker
Frame/Rating G Frame (125 A)
Interrupting Rating, 50/60 Hz, 240V (kA) 65
Interrupting Rating, 50/60 Hz, 480V (kA) 35
Interrupting Rating, 50/60 Hz, 600V (kA) 14
Breaking Capacity, 50/60 Hz, 220V (kA) 85
Breaking Capacity, 50/60 Hz, 415V (kA) 50
Breaking Capacity, 50/60 Hz, 440V (kA) 50
Device Type 140G - Molded Case Circuit Breaker
Number of Poles 4 Poles
Frame Size G frame
Rated Current(A) 160 A
Protection T/M - Thermal Magnetic
Assembly Factory Assembled
Opprinnelsesland IT
Tolltariffnummer 85362090
Lengde 14.399
Høyde 12.601
Livssyklus Active
