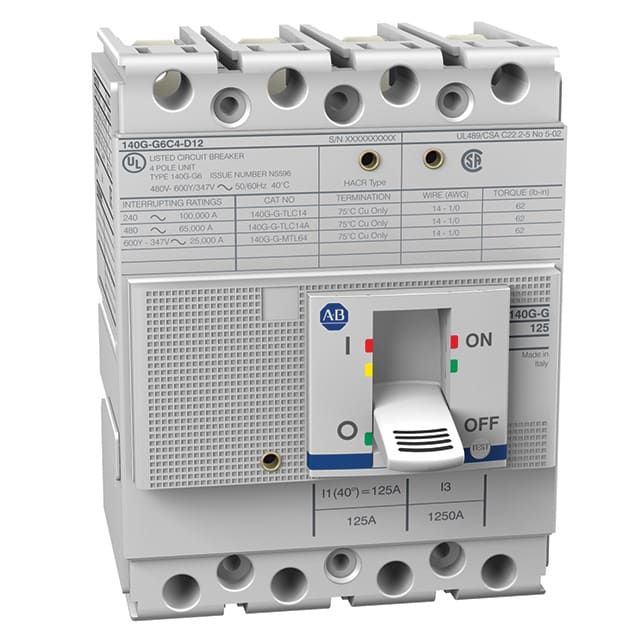

Effektbr.4-pol G str.125A Icu=50KA 400V fast.term./magn.
inkl. mva.
140G - Molded Case Circuit Breaker, G frame, 35 kA, T/M - Thermal Magnetic, 4 Poles, Rated Current 125 A
Egenskaper for produkt/familie
- Offers a wide range of operating mechanisms to fit a variety of panel configurations
- Offers a wide range of accessories for global availability
- Provides greater customization in trip units
- Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
Spesifikasjoner | |
---|---|
Bulletin Number | 140G - Molded Case Circuit Breaker |
Frame/Rating | G Frame (125 A) |
Interrupting Rating, 50/60 Hz, 240V (kA) | 65 |
Interrupting Rating, 50/60 Hz, 480V (kA) | 35 |
Interrupting Rating, 50/60 Hz, 600V (kA) | 14 |
Breaking Capacity, 50/60 Hz, 220V (kA) | 85 |
Breaking Capacity, 50/60 Hz, 415V (kA) | 50 |
Breaking Capacity, 50/60 Hz, 440V (kA) | 50 |
Device Type | 140G - Molded Case Circuit Breaker |
Number of Poles | 4 Poles |
Frame Size | G frame |
Rated Current(A) | 125 A |
Protection | T/M - Thermal Magnetic |
Assembly | Factory Assembled |
Opprinnelsesland | IT |
Tolltariffnummer | 85362090 |
Lengde | 14.605 |
Høyde | 12.903 |
Livssyklus | Active |
Datablad | ||
---|---|---|
Spec Sheet Filnavn: 140g-sg001_-en-p.pdf Filtype: application/pdf |
Last ned |
Nedlastinger | ||
---|---|---|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
Link to Literature Library for Tech Data Filnavn: en-US Filtype: application/pdf |
Last ned | |
2-Dimensional Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
2-Dimensional Drawing (DWG/DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
Link to Literature Library for Selectivity Guide Filnavn: en-US Filtype: application/pdf |
Last ned | |
Link to Literature Library for Installation Instructions Filnavn: en-US Filtype: application/pdf |
Last ned | |
Photo Filnavn: en-US Filtype: image/png |
Last ned |
