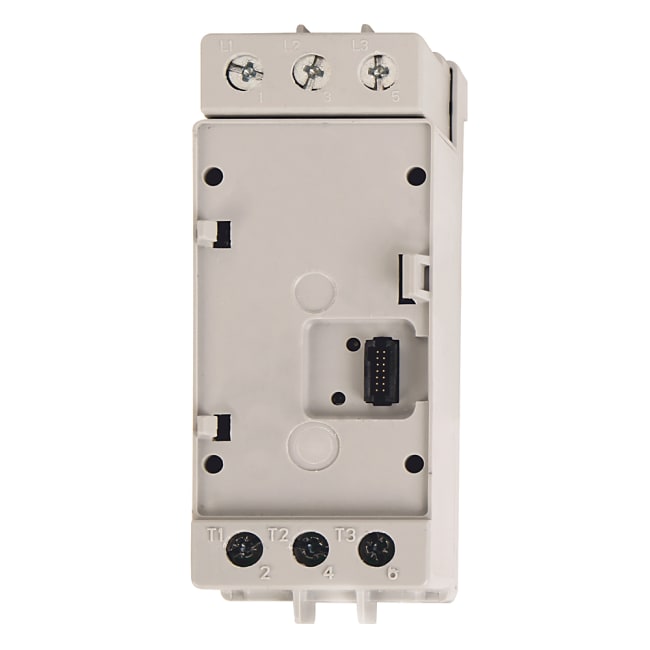

E300/E200 30 Amp Sensing Module
SKU: 193-ESM-I-30A-T
Product status:
incl. VAT
E300 Overload Relays (193/592 IEC/NEMA), Current Sensing Module (0.5...30 A) DIN Rail/Panel Mount with Line- and Load-side Power Conductor Terminals.
Overload Relays (193/592 IEC/NEMA), Current/Ground Fault Sensing Module, (0.5-30 A), Panel Mount With Line- And Load-Side PowerConductor Terminals
Properties for product/family
- Offers simplified wiring and easy integration into Logix
- Provides enhanced diagnostic information for single & three phase applications
- Includes integrated I/O (additional expansion I/O available)
- Offers the ability to customize the E300 Overload Relay by selecting one each of the following modules:
- Includes intelligent motor control (EtherNet/IP, DeviceNet, and non-networked options available)
- Offers modular solution with wide current range & adjustable trip class
| Specifications | |
|---|---|
| Type | Sensing Modules |
| Mounting Options | DIN Rail/Panel Mount with Line- and Load-side Power Conductor Terminals |
| Rated Current | 0.5...30 A |
| Sensing Module | Current Sensing Module (0.5...30 A) DIN Rail/Panel Mount with Line- and Load-side Power Conductor Terminals. |
| Opprinnelsesland | MX |
| Tolltariffnummer | 90303330 |
| Lengde | 22.987 |
| Høyde | 8.992 |
| Livssyklus | Active |
